(6-38) - VALVE ASSEMBLY, PRESSURE SENSING, EUROPE

Запчасти Case 1825B (6-38) - VALVE ASSEMBLY, PRESSURE SENSING, EUROPE (06) - POWER TRAIN

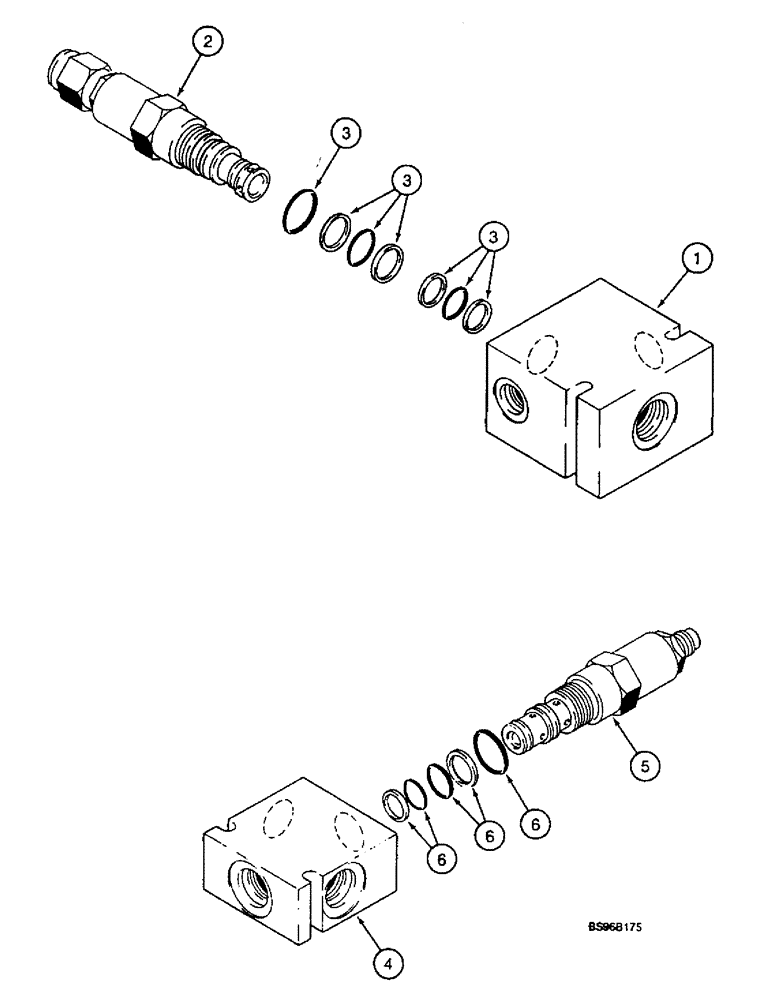

Схема запчастей Case 1825B - (6-38) - VALVE ASSEMBLY, PRESSURE SENSING, EUROPE (06) - POWER TRAIN
6
3
3
3
4
6
6
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

230671A1

VALVE

ASSY, pressure sensing, Incl. Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

242193A1

VALVE

CARTRIDGE ASSEMBLY, Incl. Ref. 3

1шт.

3

S301087

SEAL KIT

1шт.

226941A1

VALVE

ASSY, pressure reducing, Incl. Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

5

234166A1

CARTRIDGE

ASSY, Incl. Ref. 6

1шт.

6

242211A1

SEAL KIT

PACKAGE seals

1шт.
