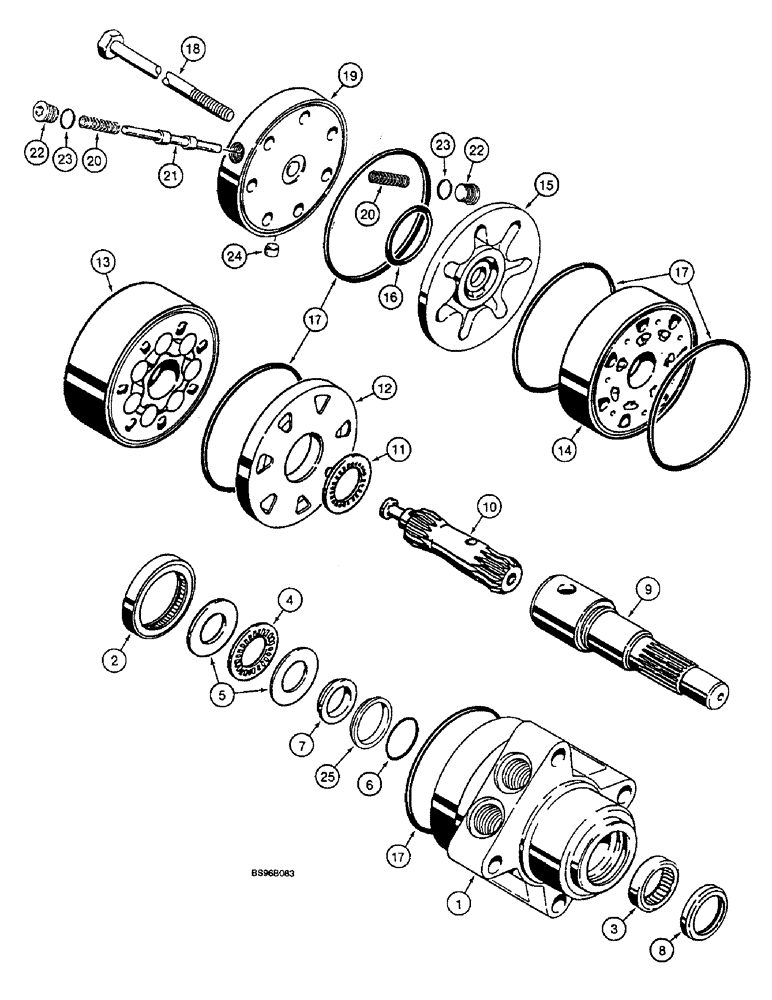

Запчасти Case 1825B (6-32) - MOTOR ASSEMBLY, HYDROSTATIC DRIVE, NORTH AMERICA (06) - POWER TRAIN

H674202

MOTOR, HYDRAULIC

ASSY, Incl. Ref. 1 - 25

2шт.

H674202R

REMAN-HYD MOTOR

1825B

2шт.

H674202C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

N14343

HOUSING

ASSY, Incl. Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

N14361

BEARING, NEEDLE,Needle, 54mm ID x 63.49mm OD x 12.7mm W

1шт.

3

N14360

BEARING, NEEDLE,Needle, 35.61mm ID x 57.15mm OD x 17.91mm W

1шт.

4

N14359

BEARING, THRUST,1.51" ID x 2.295" OD x 0.1562"

1шт.

5

N14358

BEARING WASHER,1.512" ID x 2.295" OD x 0.095"

2шт.

6

N14362

RING

1шт.

7

N14363

SEAL,34.72mm ID x 42.42mm OD x 6.48mm Thk

1шт.

8

N14357

SEAL,35.57mm ID x 57.3mm OD x 6.5mm Thk

1шт.

9

H438399

COUPLING

SHAFT

1шт.

10

H438400

UPPER LINK

1шт.

11

N14346

BEARING, THRUST,1.408" ID x 2.488" OD x 0.0945"

1шт.

12

N14347

PLATE

1шт.

13

H674648

ROTOR ASSY.

1шт.

14

N14349

MANIFOLD

1шт.

15

N14350

COMMUTATOR

1шт.

16

N6709

RING,39.47mm ID x 42.67mm OD x 1.65mm Thk

1шт.

17

N14354

RING

5шт.

18

H438401

BOLT

7шт.

N14351

COVER

ASSY, Incl. Ref. 19 - 24

1шт.

19

NSS

NOT SOLD SEPARAT

COVER

1шт.

20

N14364

SPRING

2шт.

21

N7783

VALVE

SPOOL

1шт.

22

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 23

2шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

24

N14365

PLUG

ORIFICE

1шт.

25

H435695

WASHER

1шт.
