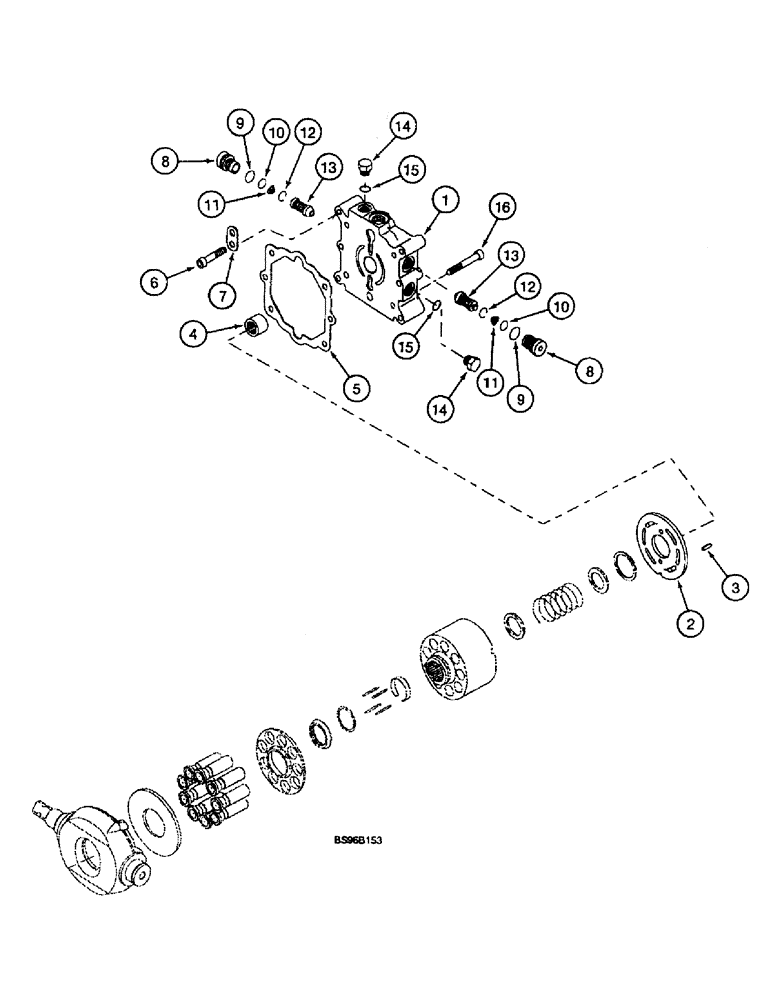

Запчасти Case 1825B (6-30) - PUMP ASSEMBLY, TANDEM, REAR DRIVE, EUROPE (06) - POWER TRAIN

222633A1

PUMP, HYDROSTATIC

HYDROSTATIC PUMP ASSY, Incl. Ref. 1 - 16, Incl. Figures 6-24 - 6-30

1шт.

87298000

REMAN-HYD PUMP

Reman for New PN 222633A1

1шт.

87298001

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

241592A1

COVER

1шт.

2

240431A1

LARGE PLATE

PLATE, LARGE

1шт.

3

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

4

132391A1

BEARING, NEEDLE

1шт.

5

124826A1

GASKET

cover

1шт.

6

132357A1

HEX SOC SCREW

4шт.

7

100703A1

PLATE, SPACER

PLATE,SPACER BRACKET

1шт.

8

H438301

PLUG

2шт.

9

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

11

N14435

SPRING

2шт.

12

H438302

RING

2шт.

13

N14434

VALVE, PRESSURE RELI

EF

2шт.

14

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 15

2шт.

16

106564A1

SCREW

4шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
