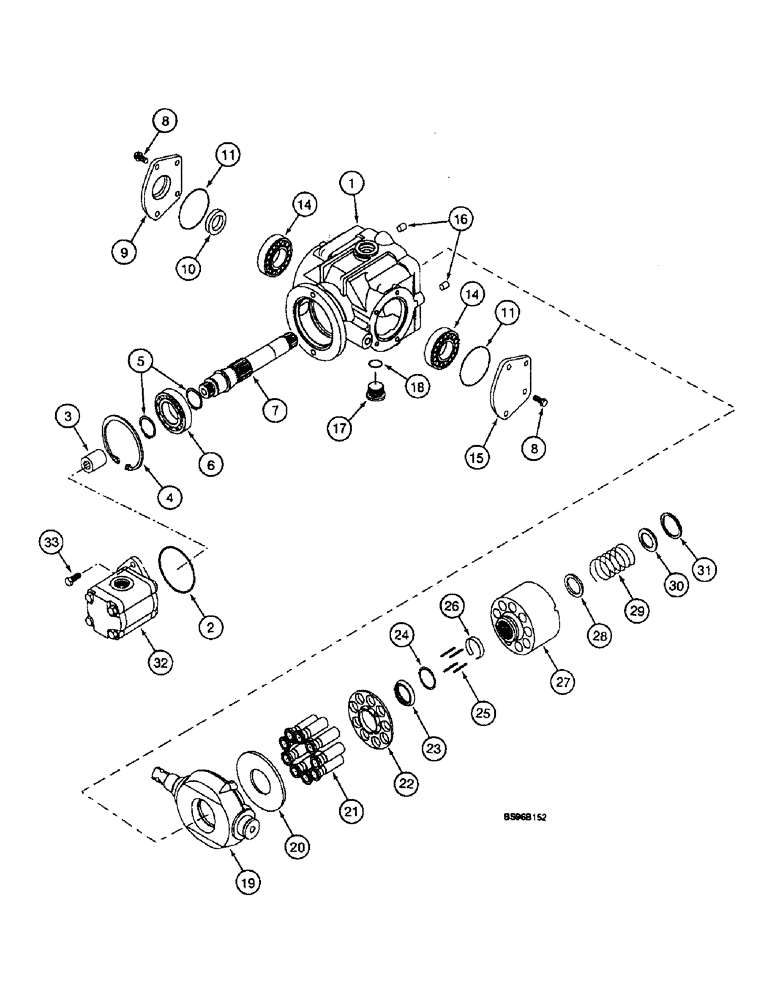

Запчасти Case 1825B (6-28) - PUMP ASSEMBLY, TANDEM, REAR DRIVE, EUROPE (06) - POWER TRAIN

222633A1

PUMP, HYDROSTATIC

HYDROSTATIC PUMP ASSY, Incl. Ref. 1 - 33, Incl. Figures 6-24 - 6-30

1шт.

87298000

REMAN-HYD PUMP

Reman for New PN 222633A1

1шт.

87298001

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

241622A1

HOUSING

1шт.

2

240432A1

O-RING

1шт.

3

124846A1

SPLINED COUPLING

1шт.

4

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

5

100-11137

SNAP RING,#137, Ext

2шт.

6

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

ball

1шт.

7

241591A1

SHAFT

1шт.

8

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

8шт.

9

H438311

COVER

CARRIER

1шт.

10

H438288

SEAL

1шт.

11

239-5146

O-RING,Square, 0.094" Thk x 2.612" ID, -146, Cl 5, 75 Duro

2шт.

14

241590A1

BEARING ASSY

2шт.

15

H438310

COVER

1шт.

16

F23124

AXLE PIN

2шт.

17

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

241593A1

PIVOT PLATE

swash

1шт.

20

100700A1

PLATE

thrust

1шт.

100706A1

CYLINDER BLOCK

KIT, Incl. Ref. 21 - 31

1шт.

21

234386A1

PISTON

9шт.

22

176376A1

COLLAR

RETAINER

1шт.

23

176375A1

GUIDE RING

1шт.

24

100705A1

THRUST WASHER

thrust

1шт.

25

117381A1

SPLIT PIN/SAFETY PIN

4шт.

26

117382A1

SPLIT PIN/SAFETY PIN

RETAINER

1шт.

27

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

28

176372A1

WASHER

thrust

1шт.

29

176373A1

SPRING

1шт.

30

115950A1

WASHER

RETAINER

1шт.

31

102-22162

SNAP RING,43.20mm ID, Int, Spiral

RING retaining

1шт.

32

240435A1

PUMP, HYDRAULIC

gear

1шт.

33

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16 x 1-1/4

2шт.
