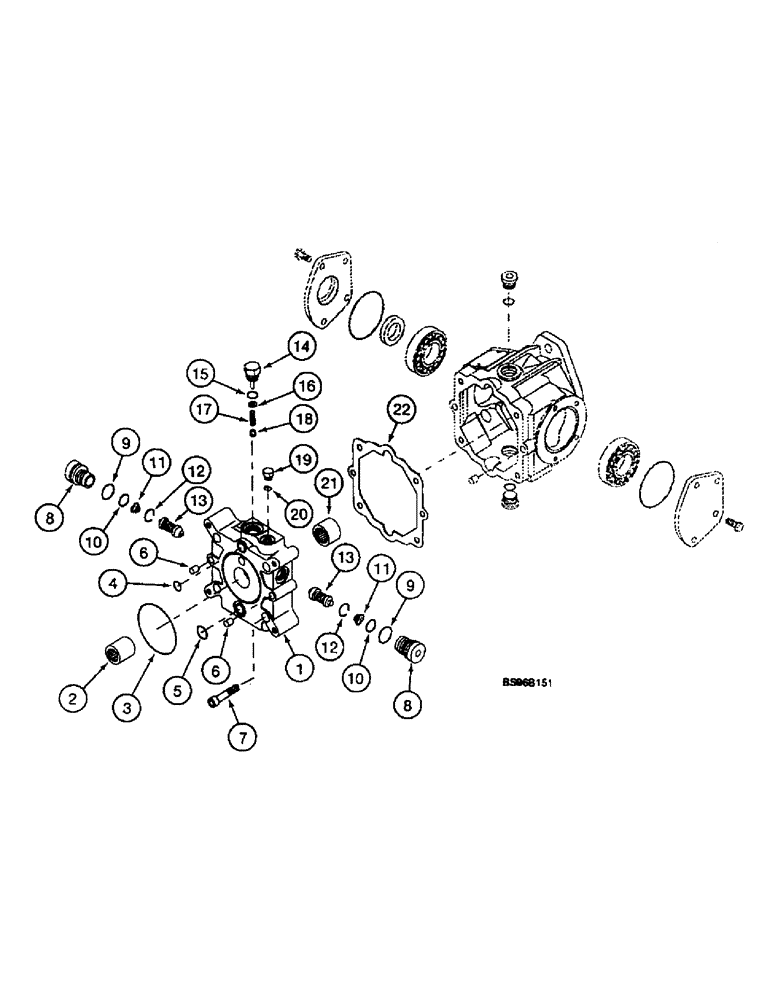

Запчасти Case 1825B (6-26) - PUMP ASSEMBLY, TANDEM, FRONT DRIVE, EUROPE (06) - POWER TRAIN

222633A1

PUMP, HYDROSTATIC

HYDROSTATIC PUMP ASSY, Incl. Ref. 1 - 22, Incl. Figures 6-24 - 6-30

1шт.

87298000

REMAN-HYD PUMP

Reman for New PN 222633A1

1шт.

87298001

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

241621A1

COVER

1шт.

2

132375A1

SPLINED COUPLING

1шт.

3

238-5153

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

1шт.

4

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

6

F23124

AXLE PIN

2шт.

7

106564A1

SCREW

4шт.

8

H438301

PLUG

relief valve

2шт.

9

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

11

N14435

SPRING

2шт.

12

H438302

RING

2шт.

13

N14434

VALVE, PRESSURE RELI

EF

2шт.

14

234850A1

PLUG

Incl. Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

132377A1

BLOCK

KIT shim

1шт.

17

124828A1

SPRING

1шт.

18

H438300

POPPET

POPPET valve

1шт.

19

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 20

1шт.

21

132391A1

BEARING, NEEDLE

1шт.

22

124826A1

GASKET

cover

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
