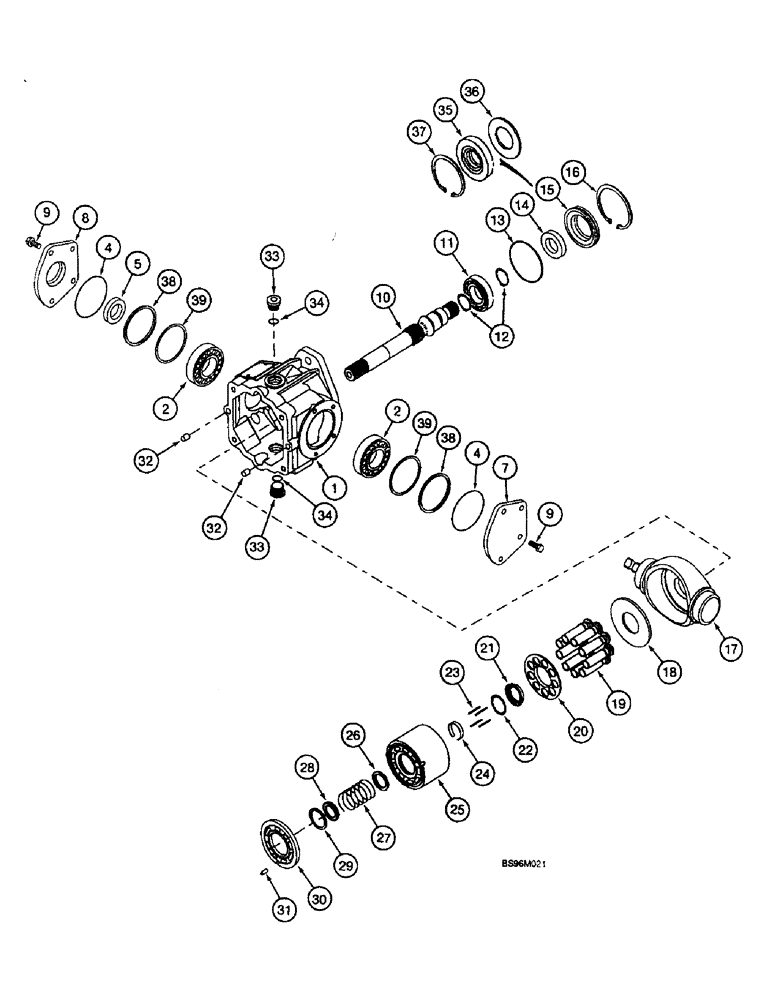

Запчасти Case 1825B (6-24) - PUMP ASSEMBLY, TANDEM, FRONT DRIVE, EUROPE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
222633A1
PUMP, HYDROSTATIC
HYDROSTATIC PUMP ASSY, Incl. Ref. 1 - 39, Incl. Figures 6-24 - 6-30
1шт.
87298000
REMAN-HYD PUMP
Reman for New PN 222633A1
1шт.
87298001
CORE-HYDRAULIC PUMP
Return Number
1шт.
1
241587A1
HOUSING
input shaft
1шт.
2
241590A1
BEARING ASSY
2шт.
4
239-5146
O-RING,Square, 0.094" Thk x 2.612" ID, -146, Cl 5, 75 Duro
2шт.
5
H438288
SEAL
1шт.
7
H438310
COVER
1шт.
8
H438311
COVER
CARRIER
1шт.
9
627-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd
8шт.
10
241608A1
SHAFT
1шт.
11
A29183
BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W
1шт.
12
100-11137
SNAP RING,#137, Ext
2шт.
13
238-5146
O-RING,0.103" Thk x 2.612" ID, -146, Cl 5, 75 Duro
If equipped
1шт.
14
100699A1
SEAL
if equipped
1шт.
15
100704A1
CARRIER FLANGE SEAL
CARRIER, if equipped
1шт.
16
103-21281
SNAP RING,66.92mm ID x 2.36mm W, Int
1шт.
17
241593A1
PIVOT PLATE
swash
1шт.
18
100700A1
PLATE
thrust
1шт.
100706A1
CYLINDER BLOCK
KIT, Incl. Ref. 19 - 29
1шт.
19
234386A1
PISTON
9шт.
20
176376A1
COLLAR
RETAINER
1шт.
21
176375A1
GUIDE RING
1шт.
22
100705A1
THRUST WASHER
thrust
1шт.
23
117381A1
SPLIT PIN/SAFETY PIN
4шт.
24
117382A1
SPLIT PIN/SAFETY PIN
RETAINER
1шт.
25
NSS
NOT SOLD SEPARAT
BLOCK
1шт.
26
176372A1
WASHER
thrust
1шт.
27
176373A1
SPRING
1шт.
28
115950A1
WASHER
RETAINER
1шт.
29
102-22162
SNAP RING,43.20mm ID, Int, Spiral
retaining
1шт.
30
240430A1
PLATE
valve
1шт.
31
38-11210
LOCK PIN,3/16" x 5/8", Slotted
1шт.
32
F23124
AXLE PIN
2шт.
33
9841223
PLUG,1-1/16" - 12 ORB
Incl. Ref. 34
2шт.
34
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
35
N14103
SEAL
if equipped
1шт.
36
241589A1
SEALING WASHER,38.1mm ID x 71.75mm OD x 2.16mm Thk
SEAL, if equipped
1шт.
37
103-21281
SNAP RING,66.92mm ID x 2.36mm W, Int
If equipped
1шт.
38
H438309
SPACER
if equipped
2шт.
39
132383A1
BLOCK
SHIM, if equipped
2шт.
Выбрано товаров: 41
