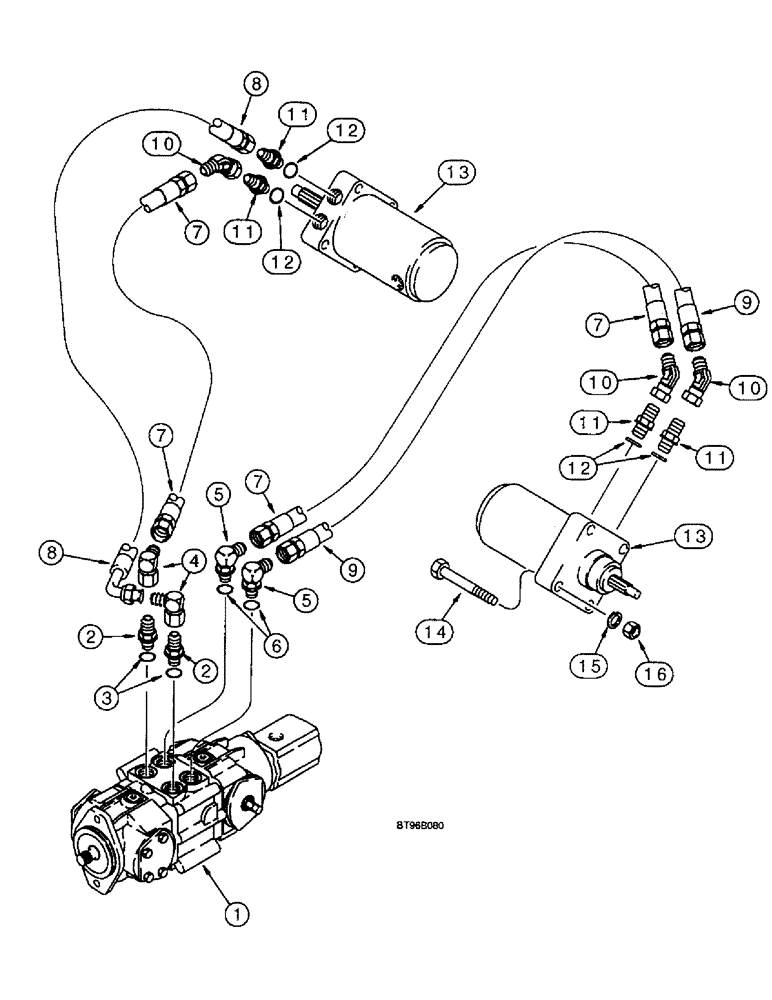

Запчасти Case 1825B (6-16) - HYDROSTATIC CIRCUIT, DRIVE MOTORS, EUROPE (06) - POWER TRAIN

1

222633A1

PUMP, HYDROSTATIC

HYDROSTATIC PUMP ASSY, see Figure 6-24 - 6-30

1шт.

1

87298000

REMAN-HYD PUMP

Reman for New PN 222633A1

1шт.

1

87298001

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Incl. Ref 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 6

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

223594A1

HOSE

508 mm, 20 in

2шт.

8

223557A1

HOSE

572 mm, 22-5/8 in

1шт.

9

223595A1

RADIATOR HOSE,16.00 mm ID x 457.00 mm

1шт.

10

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

3шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER, Incl. Ref. 12

4шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

234185A1

MOTOR, HYDRAULIC

ASSY, see Figure 6-34

2шт.

14

80-1840

12 PT SCREW,Flg, 1/2" - 13 x 2.50", Gr 8

1/2 NC x 2-1/2 in

8шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

16

429-108

NUT,1/2"-13, G8

1/2; 8

8шт.
