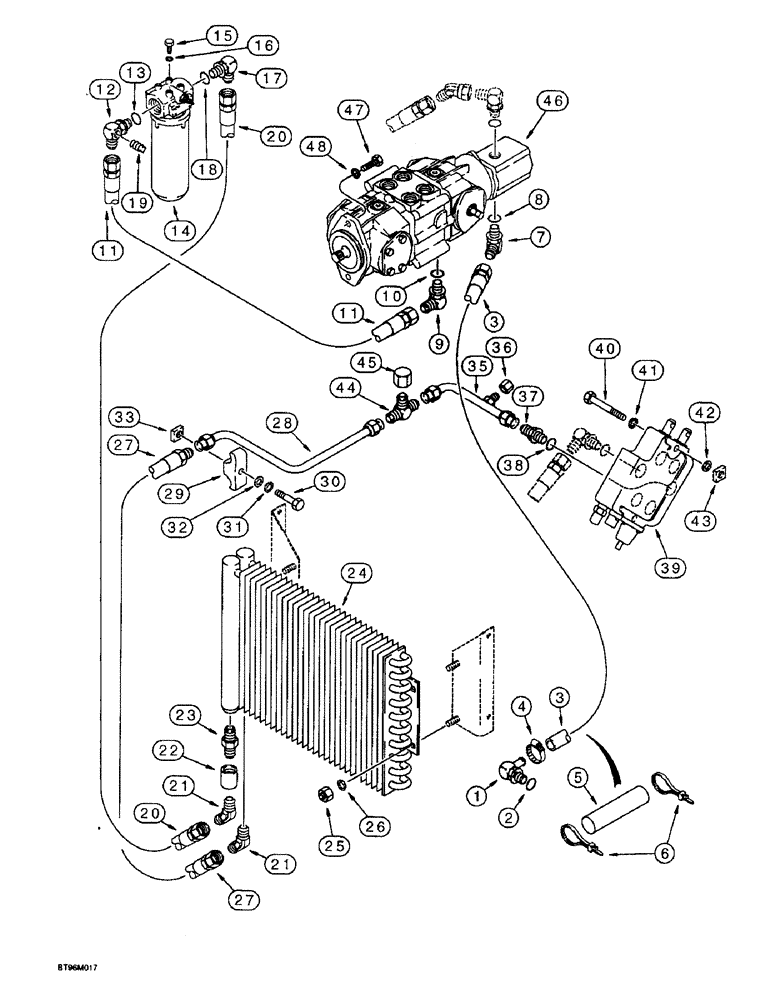

Запчасти Case 1825B (6-08) - HYDROSTATIC CIRCUIT, PUMP, FILTER AND COOLER (06) - POWER TRAIN

1

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, Incl. Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

223471A1

HOSE

1042 mm, 41-1/8 in

1шт.

4

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

5

D132054

SLEEVE

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 in

2шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x Or, Incl. Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

223609A1

HOSE

1118 mm, 44-1/8 in

1шт.

12

R54917

FITTING

ELBOW, 1-1/16 fl x 1-5/16 Or in, 90°, Incl. Ref. 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

D121629

FILTER, ENGINE OIL

FILTER, OIL ASSY, see Figure 6-40

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

square hd, 1/8-27 NPTF

1шт.

20

223624A1

HOSE

1486 mm, 58-5/8 in

1шт.

21

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

ELBOW, 3/4-16 fl x 3/8 PT, 45°

2шт.

22

217-1102

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

COUPLING, 3/8 in

1шт.

23

217-1081

HYD CONNECTOR,3/8" - 18 NPTF

NIPPLE grease, 3/8 PT x 1-7/16 in

1шт.

24

233976A1

COOLER, OIL

1шт.

25

425-105

NUT,5/16"-18, G5

4шт.

26

492-11031

LOCK WASHER,5/16"

4шт.

27

223626A1

HOSE

406 mm, 16 in

1шт.

28

223627A1

TUBE,19.05 mm OD

1шт.

29

D124301

CLAMP,3/4" ID

1шт.

30

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

31

492-11038

LOCK WASHER,3/8"

1шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

33

84899

SQUARE NUT,Sq, 3/8"-16, G2

3/8 inch NC

1шт.

34

218-1578

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

TEE, N.A. only

1шт.

35

H674468

TUBE,19.05 mm OD x 225, 80 mm L

1шт.

36

218-756

CAP,37 Degree, 7/8"-14

1шт.

37

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER, 1-1/16-12 fl x 7/8-14 Or, Incl. Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

39

H674734

VALVE

ASSY, control, see Figure 8-12

1шт.

40

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

41

492-11031

LOCK WASHER,5/16"

2шт.

42

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

43

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

44

218-1578

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

TEE, Europe only

1шт.

45

218-755

CAP,37 Degree, 3/4"-16

Europe only

1шт.

46

222633A1

PUMP, HYDROSTATIC

HYDROSTATIC PUMP ASSY, see Figure 6-24 - 6-30

1шт.

46

87298000

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

46

87298001

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

47

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Use with Ref. 49

2шт.

48

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

49

B17422

LOCTITE

50 ml, not illustrated

1шт.
