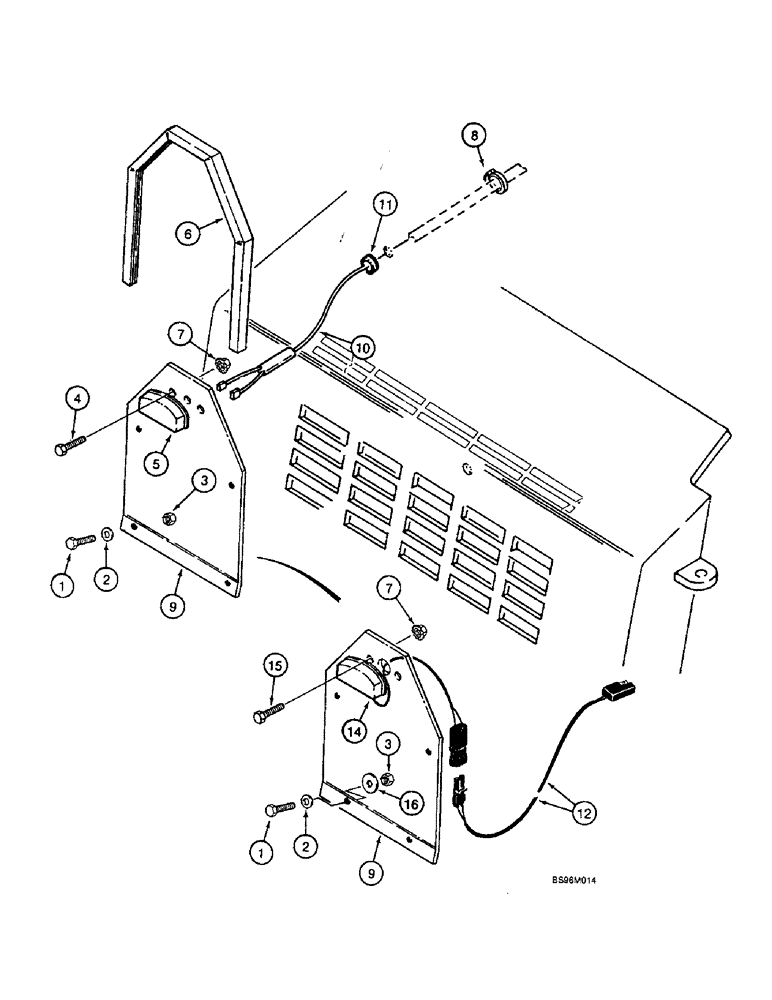

Запчасти Case 1825B (4-36) - LICENSE PLATE LAMP, ITALIAN D.G.M. (04) - ELECTRICAL SYSTEMS

1

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

2

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

Used with Ref. 5

2шт.

5

E134499

NUMBER PLATE LAMP

LAMP, used with Ref. 9 and 10

1шт.

6

D47936

LINING

TRIM, 24 in, 610 mm, cut from D52812

1шт.

7

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

with lock washer

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 in

3шт.

9

E134518

LARGE PLATE

PLATE, LARGE used with Ref. 5 and 10

1шт.

10

111128A1

HARNESS

lamp, used with Ref. 5 and 9

1шт.

11

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

12

189594A1

HARNESS

used with Ref. 13 and 14

1шт.

13

189851A1

SUPPORT

used with Ref. 12 and 14

1шт.

14

120229A1

LIGHT

used with Ref. 12 and 13

1шт.

15

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

Used with Ref. 13 and 14

2шт.

16

D138421

WASHER

used with Ref. 13 and 14

2шт.
