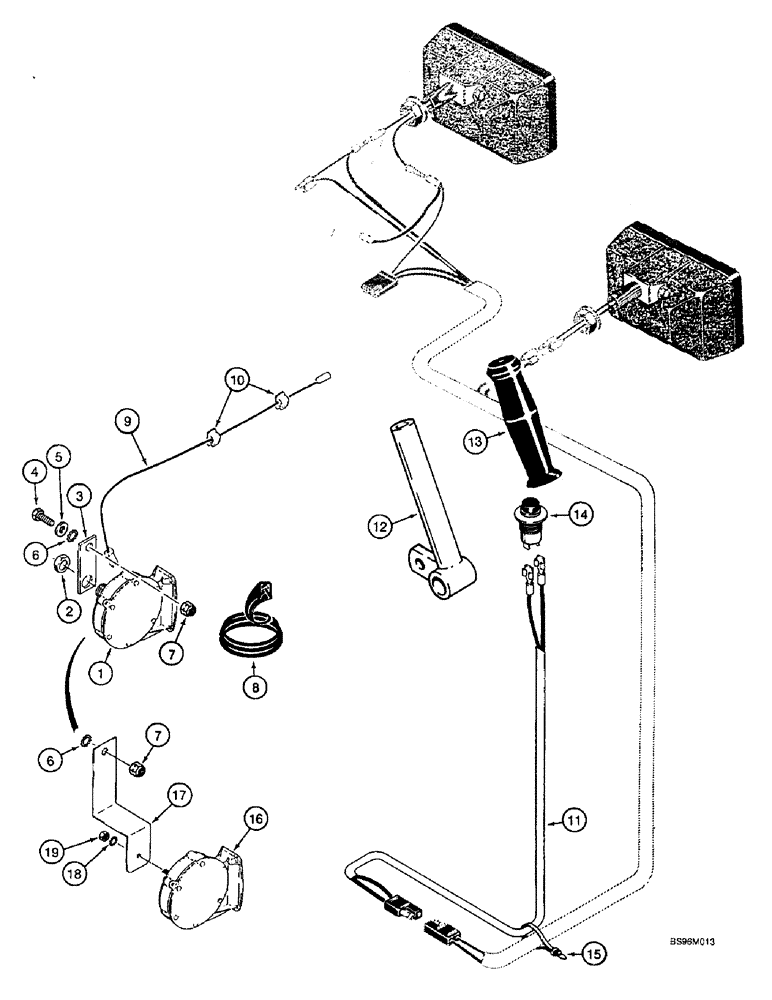

Запчасти Case 1825B (4-26) - HORN, EUROPE (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

12 volt, if equipped

1шт.

2

L30866

LOCK NUT

7/8, used with Ref. 1

1шт.

3

176950A1

SUPPORT

used with Ref. 1

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

6

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

7

231-5146

FLANGE NUT,3/8"-16

1шт.

8

D55218

SEAL, GLASS,76mm L

3 in, 76 mm, cut from D52812, if equipped

1шт.

9

111161A1

ELECTRICAL WIRE

WIRE

1шт.

10

H439303

CLIP

2шт.

11

D134076

HARNESS

horn

1шт.

12

H674464

CONTROL LEVER

right-hand

1шт.

13

D133282

HANDLE

GRIP

1шт.

14

D141486

SWITCH

horn

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 in

1шт.

16

254130A1

HORN

12 volt, if equipped

1шт.

17

253607A1

SUPPORT

used with Ref. 16

1шт.

18

493-41026

LOCK WASHER,Ext Tooth, 1/4"

Used with Ref. 16

1шт.

19

825-1406

NUT,M6, Cl 8

Used with Ref. 16

1шт.
