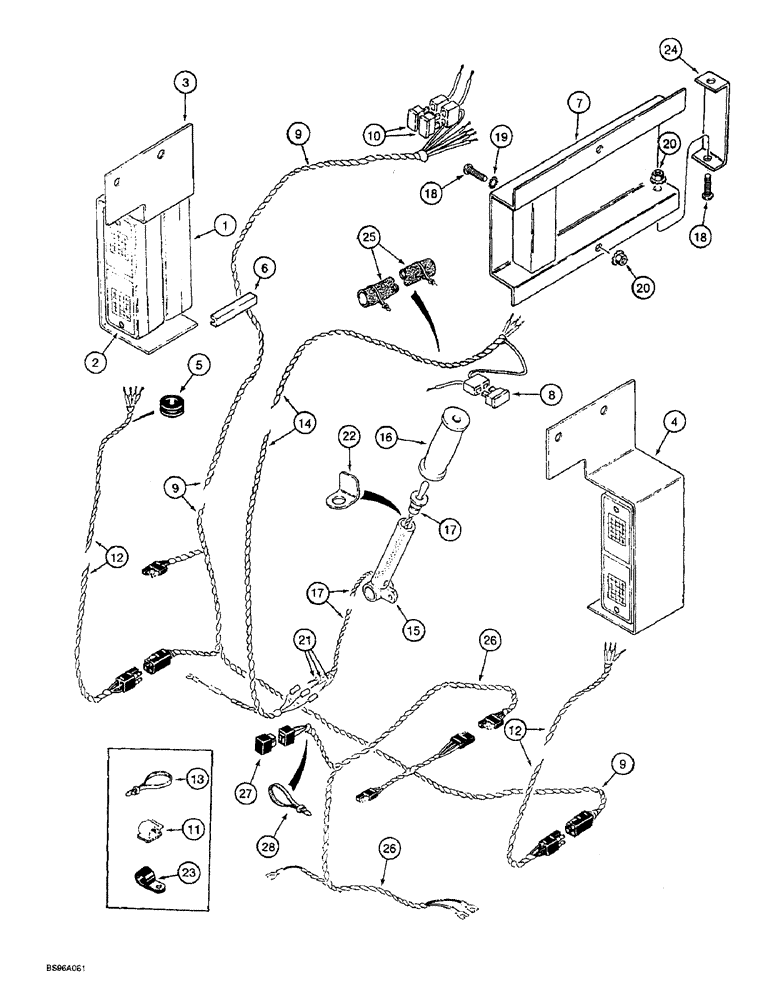

Запчасти Case 1825B (4-14) - HARNESS, ROAD LAMPS, EUROPE (04) - ELECTRICAL SYSTEMS

1

E137163

LIGHT ASSY.

LAMP, see Figure 4-16

2шт.

2

E137174

LENS

LAMP, see Figure 4-16

2шт.

3

103372A1

SUPPORT

left-hand

1шт.

4

103373A1

SUPPORT

right-hand

1шт.

5

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

2шт.

6

D55218

SEAL, GLASS,76mm L

3 inch, 76 mm, cut from D52812

2шт.

7

NSS

NOT SOLD SEPARAT

SWITCH ASSY, see Figure 4-18

1шт.

8

A149802

FUSE

20 amp

1шт.

9

141421A1

HARNESS

center

1шт.

10

A149799

FUSE

7.5 amp

2шт.

11

H439303

CLIP

1шт.

12

111126A1

HARNESS

rear

2шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 in

1шт.

14

116458A1

HARNESS

front

1шт.

15

103501A1

HANDLE

LEVER

1шт.

16

D133282

HANDLE

GRIP

1шт.

17

177673A1

PRESSURE SWITCH

turn signal

1шт.

18

440-10810

SCREW,Cross Pan Hd, #8-32 x 5/8"

4шт.

19

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

20

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

4шт.

21

E20680

TERMINAL CONNECTOR,Male

TERMINAL

3шт.

22

123676A1

SHIELD

GUARD

1шт.

23

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

24

104823A1

COVER

1шт.

25

226196A1

SLEEVE

1шт.

26

111127A1

HARNESS

brake light, Italian D.G.M. models

1шт.

27

E137223

RELAY

Italian D.G.M. models

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Italian D.G.M. models

3шт.
