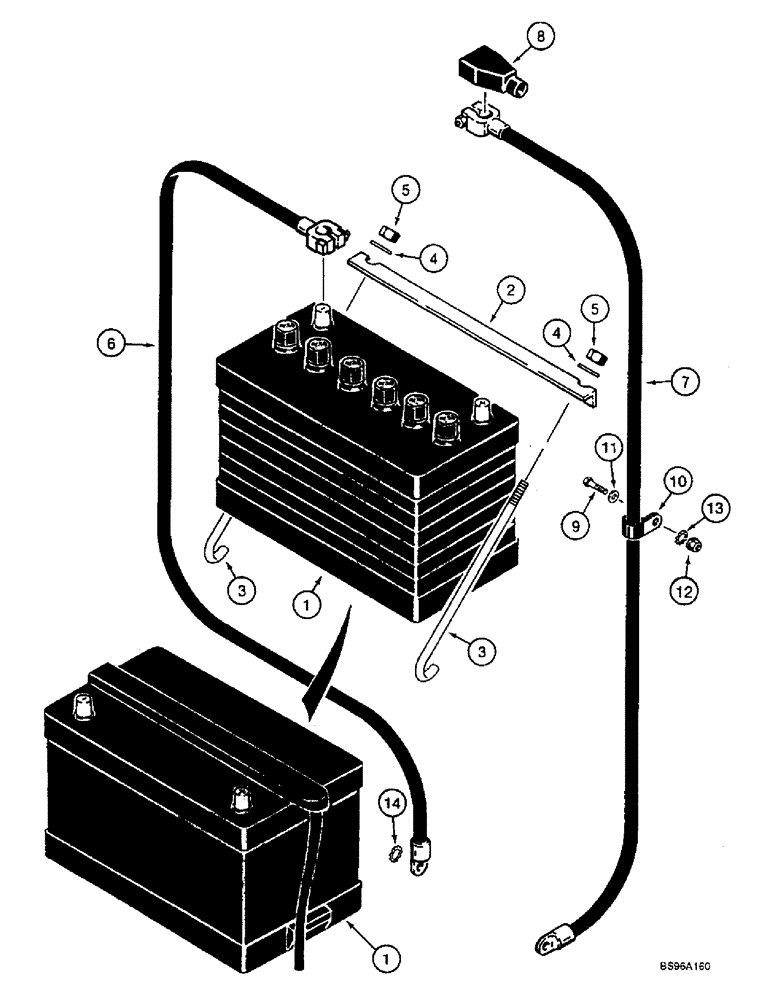

Запчасти Case 1825B (4-12) - BATTERY AND BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

B2472

DRY BATTERY

1шт.

2

D59706

ANGLE

1шт.

3

H436311

BOLT

2шт.

4

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

2шт.

6

D136983

CABLE

negative

1шт.

7

D136982

CABLE

positive, Incl. Ref. 8

1шт.

8

383619R1

COVER

BOOT

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

11

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

13

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

14

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.
