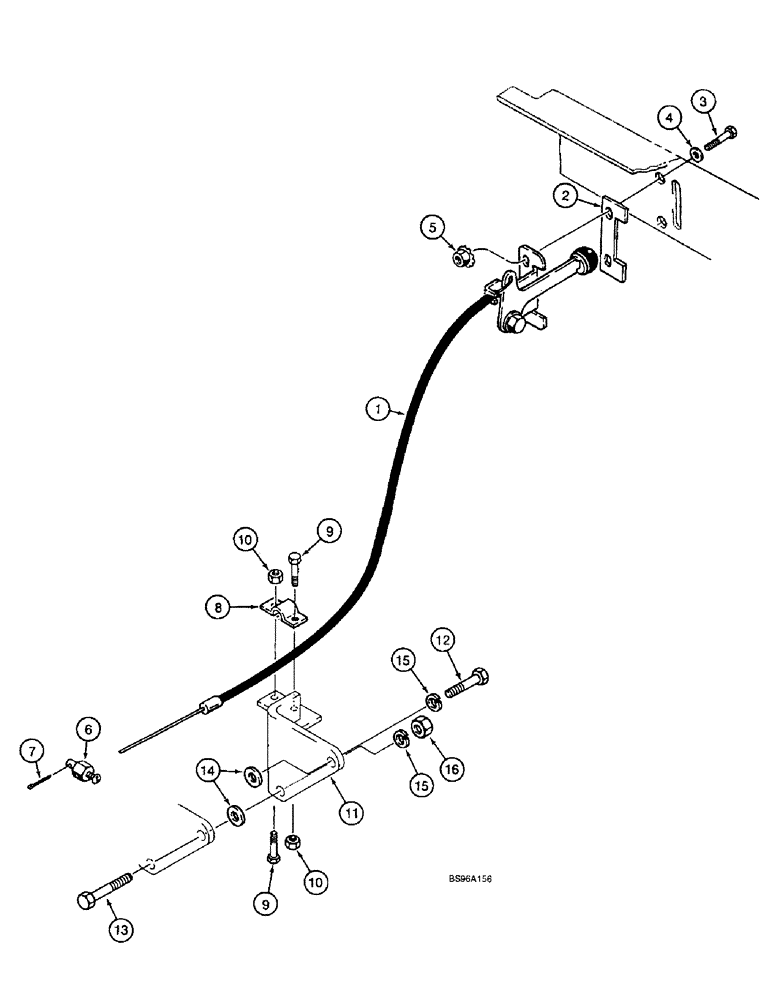

Запчасти Case 1825B (3-04) - THROTTLE CONTROL (03) - FUEL SYSTEM

1

229467A1

CONTROL LEVER

CABLE

1шт.

2

121831A1

LARGE PLATE

PLATE, LARGE

1шт.

3

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

No. 10 NC x 5/8 in

2шт.

4

495-31022

WASHER,#10

2шт.

5

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

2шт.

6

D92852

PIVOT

1шт.

7

432-610

COTTER PIN,3/32" x 5/8"

1шт.

8

351100C1

CLAMP

1шт.

9

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

No. 10 NC x 1/2 in

2шт.

10

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

2шт.

11

222936A1

SUPPORT

1шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

13

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

15

892-11008

LOCK WASHER,8mm ID

2шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
