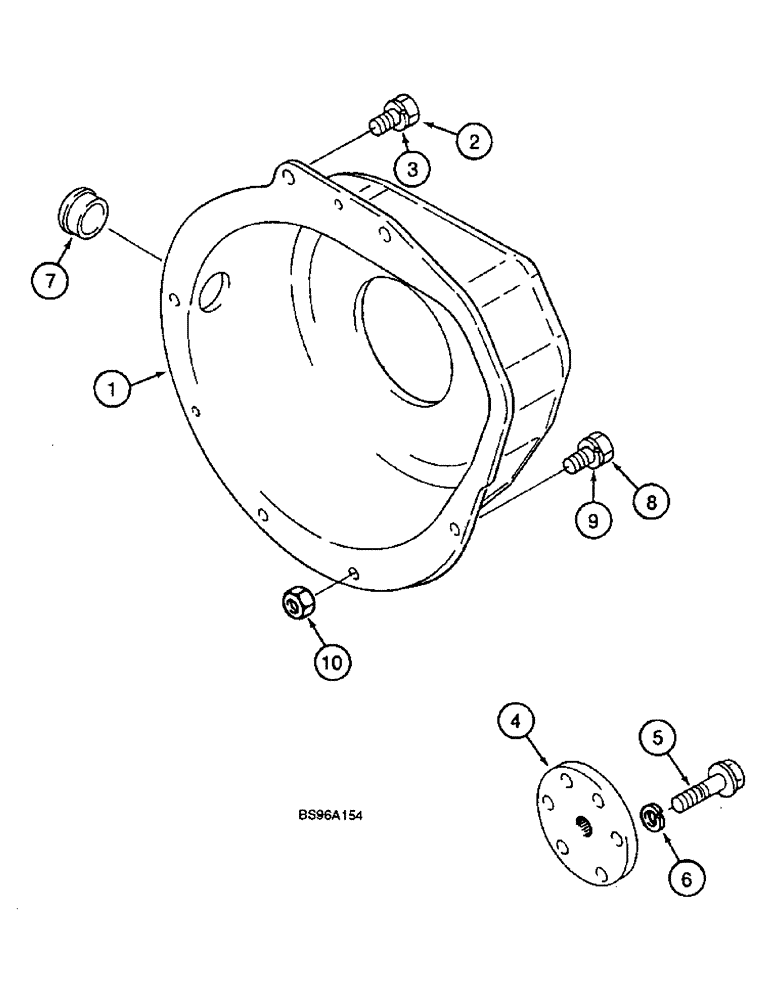

Запчасти Case 1825B (2-38) - FLYWHEEL HOUSING AND MOUNTING (02) - ENGINE

1

110654A2

HOUSING

1шт.

2

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

110548A1

FLANGE

PLATE

1шт.

5

514-730

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

6

892-11010

LOCK WASHER,M10

6шт.

7

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

9

892-11008

LOCK WASHER,8mm ID

4шт.

10

825-1408

NUT,M8, Cl 8

1шт.
