(2-32) - MAIN BEARING HOUSING

Запчасти Case 1825B (2-32) - MAIN BEARING HOUSING (02) - ENGINE

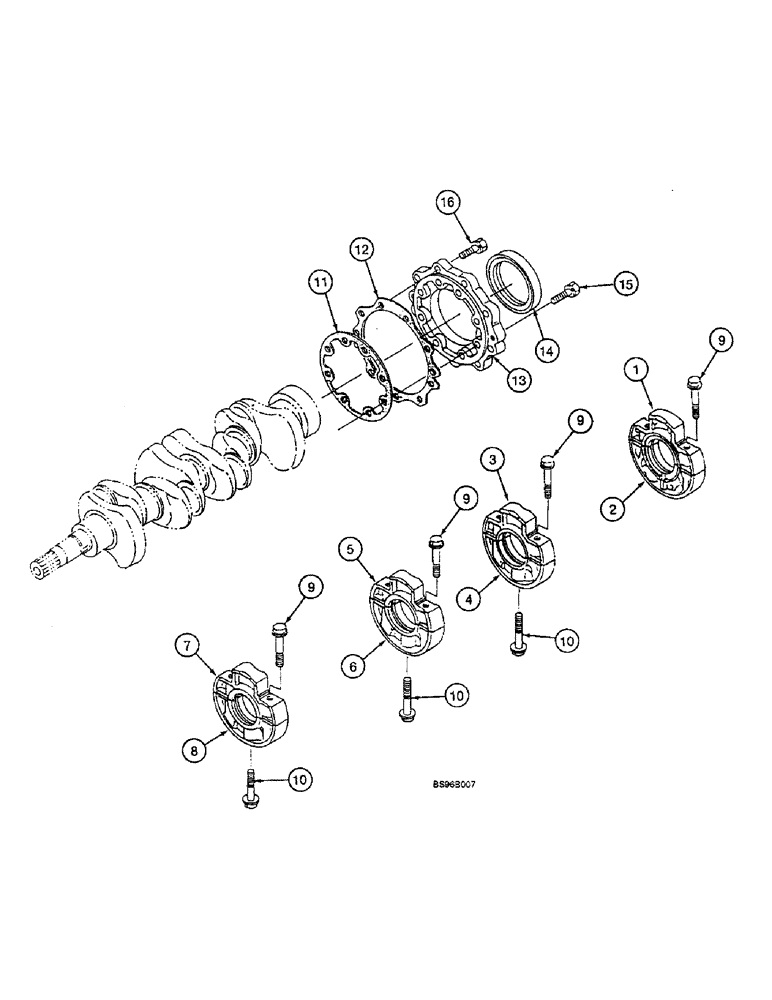

Схема запчастей Case 1825B - (2-32) - MAIN BEARING HOUSING (02) - ENGINE
13
2
10
1
12
3
9
11
7
9
9
8
16
4
9
15
10
14
10
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

125292A1

CYLINDER END CAP

HOUSING ASSY, Incl. Ref. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

125301A1

BEARING CAP,Incl Upper and Lower

HOUSING ASSY, Incl. Ref. 3 , 4

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

125300A1

BEARING CAP,Incl Upper and Lower

HOUSING ASSY, Incl. Ref. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

125298A1

HEATED GLASS

HOUSING ASSY, Incl. Ref. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

9

125293A1

BOLT

8шт.

10

125299A1

BOLT

3шт.

11

125294A1

GASKET

Cover

1шт.

12

125297A1

OIL SEAL

Cover

1шт.

13

125295A1

COVER

Cover

1шт.

14

125296A1

OIL SEAL

1шт.

15

1959216C1

BOLT

8шт.

16

1959215C1

BOLT

9шт.
