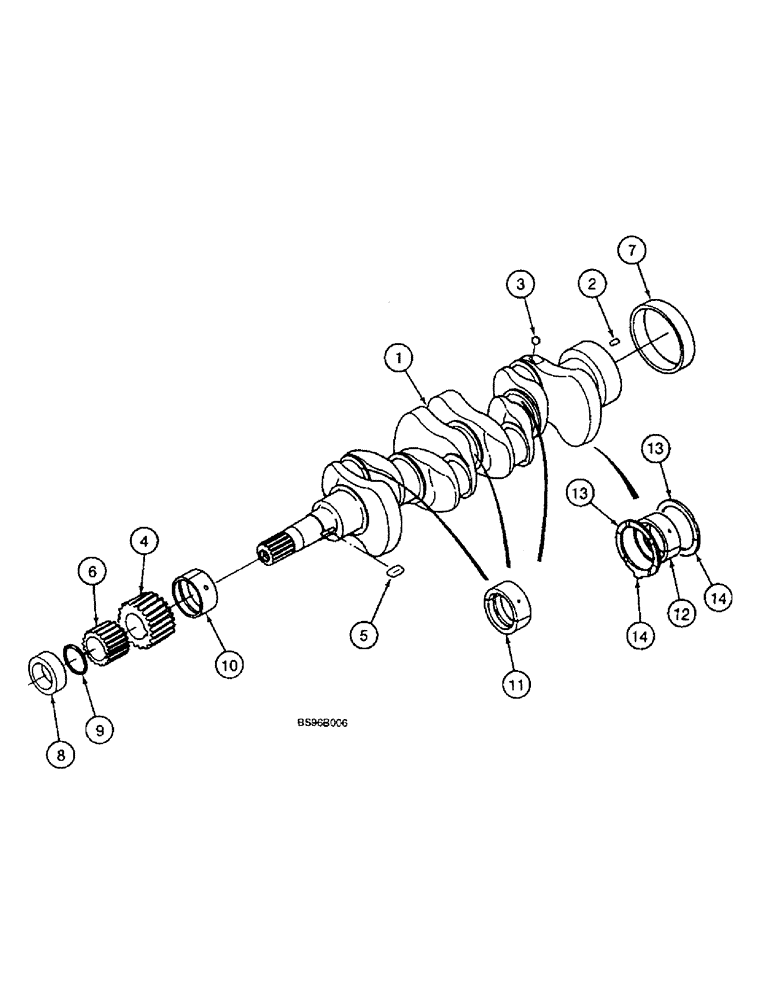

Запчасти Case 1825B (2-30) - CRANKSHAFT (02) - ENGINE

125362A1

CRANKSHAFT

Incl. Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

2

125235A1

PIN

1шт.

3

125410A1

BALL

4шт.

4

125411A1

GEAR

GEAR

1шт.

5

125412A1

KEY

1шт.

6

125414A1

PINION

GEAR

1шт.

7

125415A1

SLEEVE

SLEEVE

1шт.

8

125416A1

COLLAR

COLLAR

1шт.

9

125417A1

O-RING

1шт.

10

125418A1

CRANKSHAFT BEARING

crankshaft, standard

1шт.

10

125420A1

CRANKSHAFT BEARING

crankshaft, undersize, 0.20 mm

1шт.

10

125421A1

CRANKSHAFT BEARING

crankshaft, undersize, 0.40 mm

1шт.

11

125422A1

CRANKSHAFT BEARING

crankshaft, standard

3шт.

11

125423A1

CRANKSHAFT BEARING

crankshaft, undersize, 0.20 mm

3шт.

11

125424A1

CRANKSHAFT BEARING

crankshaft, undersize, 0.40 mm

3шт.

12

125427A1

CRANKSHAFT BEARING

crankshaft, standard

1шт.

12

125429A1

CRANKSHAFT BEARING

crankshaft, undersize, 0.20 mm

1шт.

12

125430A1

CRANKSHAFT BEARING

crankshaft, undersize, 0.40 mm

1шт.

13

125431A1

THRUST BEARING

PLATE standard

2шт.

13

125432A1

THRUST BEARING

PLATE undersize, 0.20 mm

2шт.

13

125433A1

THRUST BEARING

PLATE undersize, 0.40 mm

2шт.

14

125434A1

THRUST BEARING

PLATE standard

2шт.

14

125435A1

THRUST BEARING

PLATE undersize, 0.20 mm

2шт.

14

125437A1

THRUST BEARING

PLATE undersize, 0.40 mm

2шт.
