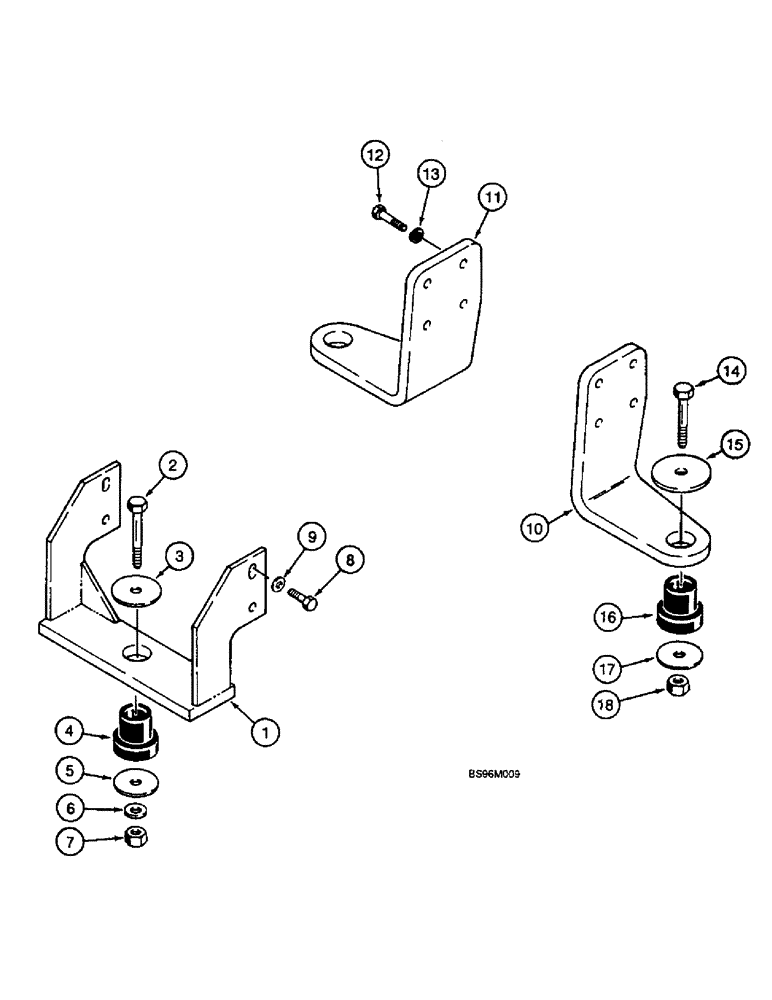

Запчасти Case 1825B (2-08) - ENGINE MOUNTING (02) - ENGINE

225687A1

ENGINE

not illustrated

1шт.

1

224484A1

SUPPORT

rear

1шт.

2

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

3

495-81239

WASHER,17/32" x 2 1/4" x .180"

1шт.

4

D137185

MOUNTING PARTS

INSULATOR

1шт.

5

495-81241

WASHER,0.56" ID x 2" OD x 0.1" Thk

9/16 x 2 x 3/32

1шт.

6

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

1шт.

7

232-4118

NUT,1/2"-13, GC

1шт.

8

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

10

222696A1

SUPPORT

right-hand

1шт.

11

222695A1

SUPPORT

left-hand

1шт.

12

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

8шт.

13

892-11010

LOCK WASHER,M10

8шт.

14

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

15

495-81239

WASHER,17/32" x 2 1/4" x .180"

2шт.

16

D137185

MOUNTING PARTS

INSULATOR

2шт.

17

495-81241

WASHER,0.56" ID x 2" OD x 0.1" Thk

9/16 x 2 x 3/32

2шт.

18

232-4118

NUT,1/2"-13, GC

2шт.
