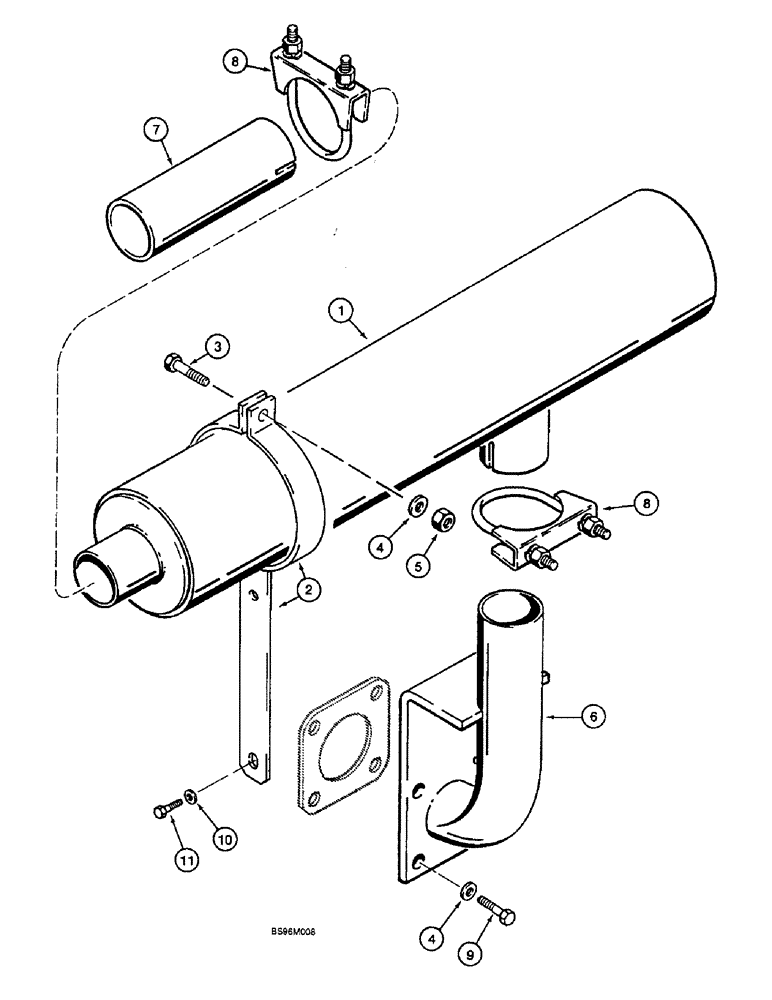

Запчасти Case 1825B (2-06) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

222479A1

MUFFLER

1шт.

2

233745A1

SUPPORT

CLAMP

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

4

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

5шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

6

226125A1

PIPE

exhaust

1шт.

7

226676A1

PIPE

1шт.

8

A135473

CLAMP

special

2шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

10

H426767

WASHER

1шт.

11

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.
