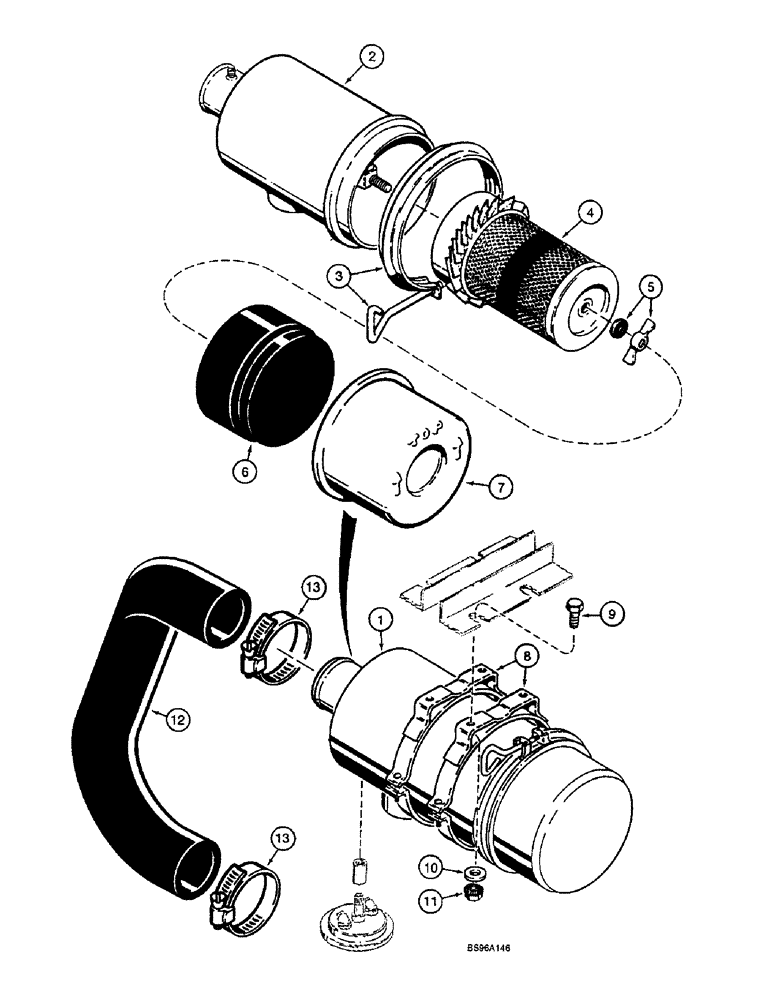

Запчасти Case 1825B (2-04) - AIR CLEANER (02) - ENGINE

1

D82572

AIR CLEANER

Incl. Ref. 2 - 7

1шт.

PLASTIC AIR CLEANER NOISE REDUCING. ELEMENT #335714A1, COVER 335715A1, BODY 335713A1, AND VALVE DUST EVACUATOR A189054. HOSE 313275A1 470M AND HOSE CLEANER 313274A1. THIS NEW FILTER (315051A1, assy) IS PLASTIC NOT METAL AND END COVER IS HELD ON WITH 2 WIRE CLIPS NOT BAND. SEE REF DRAWING REF 320082A1. NAPO TECH 4/13/99.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

D86613

CLAMP

1шт.

4

D82571

FILTER, ELEMENT

ELEMENT, FILTER

1шт.

5

D86612

NUT

1шт.

6

D86615

BAFFLE

1шт.

7

73269C1

CUP

1шт.

8

D27245

COLLAR CLAMP

TRIM

2шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

10

H426775

WASHER

4шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

D135088

INTAKE AIR HOSE,44.75 mm ID, SAE 20R4 Class D2

1шт.

13

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.
