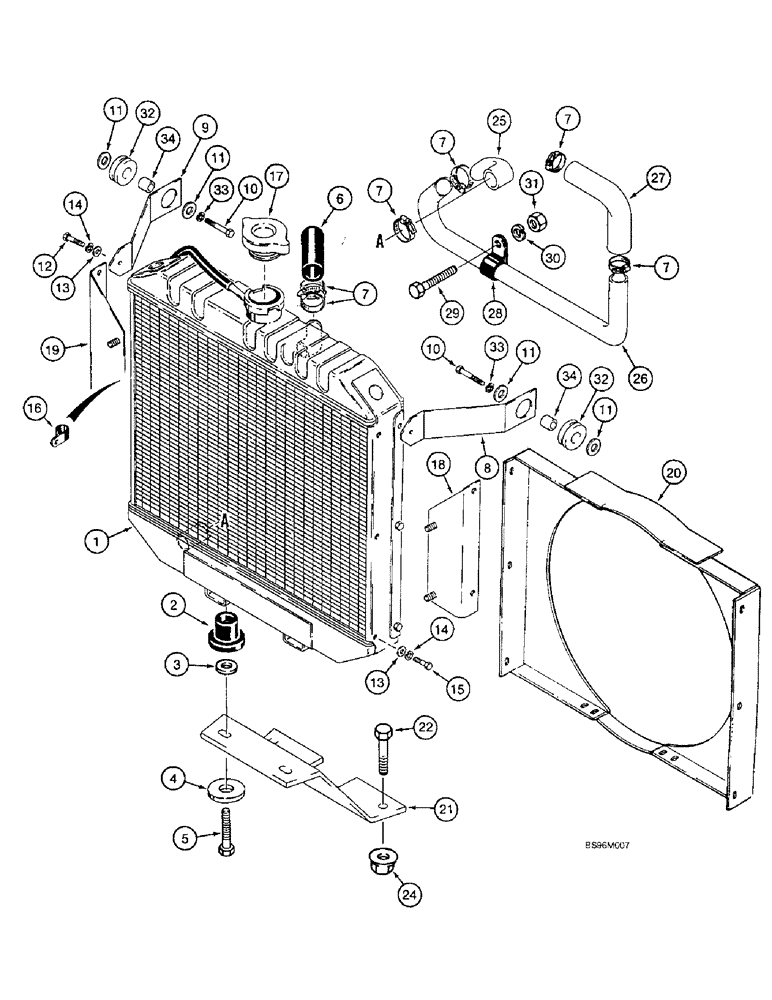

Запчасти Case 1825B (2-02) - RADIATOR MOUNTING (02) - ENGINE

1

109612A2

RADIATOR

1шт.

2

D75755

ISOLATOR

2шт.

3

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

5

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

6

110804A1

RADIATOR HOSE,25.00 mm ID x 177.50 mm

1шт.

7

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

6шт.

8

241999A1

SUPPORT

right-hand

1шт.

9

242000A1

SUPPORT

left-hand

1шт.

10

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

11

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

4шт.

12

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

13

H426767

WASHER

6шт.

14

492-11025

LOCK WASHER,1/4"

6шт.

15

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

3шт.

16

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

17

A170241

RADIATOR CAP

15 psi

1шт.

18

225221A1

SUPPORT

right-hand

1шт.

19

225219A1

SUPPORT

left-hand

1шт.

20

227033A1

DEFLECTOR

SHROUD

1шт.

21

226462A1

SUPPORT

1шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

24

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

25

D136886

TUBE

700 mm, 2-3/4 in

1шт.

26

228219A1

TUBE

1шт.

27

A173838

RADIATOR HOSE,25.00 mm ID x 126.00 mm, SAE 20R4 CLASS C, PER SAE J20

1шт.

28

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

30

492-11038

LOCK WASHER,3/8"

1шт.

31

425-106

NUT,3/8"-16, Cl 5

1шт.

32

D132895

GROMMET

2шт.

33

892-11008

LOCK WASHER,8mm ID

2шт.

34

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

SPACER

2шт.
