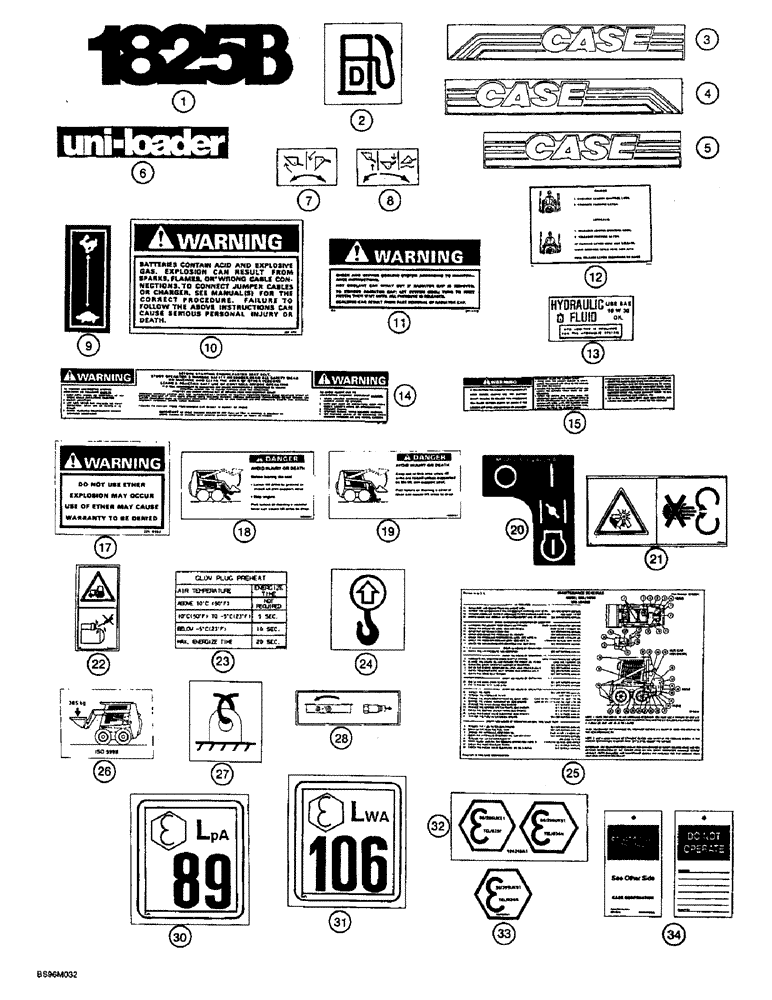

Запчасти Case 1825B (9-36) - DECALS, ENGLISH, EUROPE (09) - CHASSIS/ATTACHMENTS

1

230216A1

DECAL

model

2шт.

2

139879A1

DECAL

diesel fuel

1шт.

3

179180A2

DECAL

Case, with stripes, left

1шт.

4

179181A2

DECAL

Case, with stripes, right

1шт.

5

179177A2

DECAL

Case, with stripes

1шт.

6

D123964

DECAL

uni-loader

2шт.

7

139593A1

DECAL

bucket control

1шт.

8

139592A1

DECAL

loader arm control

1шт.

9

178662A1

DECAL

throttle speed

1шт.

10

321-6714

DECAL

warning, batteries

1шт.

11

321-6672

DECAL

warning, cooling system

1шт.

12

D134679

DECAL

parking latch

1шт.

13

H437687

DECAL

hydraulic fluid

1шт.

14

321-6460

DECAL

warning, seat belt

1шт.

15

321-7029

DECAL

warning, use support strut

1шт.

16

176262A1

DECAL

60 mm, CE symbol, not illustrated

1шт.

17

321-6952

DECAL

warning, ether

1шт.

18

120950A1

DECAL

danger, stop engine

1шт.

19

120951A1

DECAL

danger, keep out, lift arms

1шт.

20

178664A1

DECAL

ignition switch

1шт.

21

175504A1

DECAL

warning, rotating fan

1шт.

22

175509A1

WARNING DECAL

danger, jump start

1шт.

23

189257A1

DECAL

glow plug

1шт.

24

139729A1

DECAL

lift only

4шт.

25

231922A1

DECAL

maintenance schedule

1шт.

26

247783A1

DECAL

operating capacity

1шт.

27

139728A1

DECAL

tie down

4шт.

28

140026A1

DECAL

auxiliary hydraulics

1шт.

29

D55310

ADHESIVE

TRIM, 1 x 10 in, not illustrated

4шт.

30

259799A1

DECAL

operator ear, Replaces: 178666A1

1шт.

31

259803A1

DECAL

bystander, Replaces: 178667A1

1шт.

32

184247A1

DECAL

EEC certification, ROPS

1шт.

33

184249A1

DECAL

EEC certification, FOPS

1шт.

34

321-4614

TAG

TAG do not operate

1шт.
