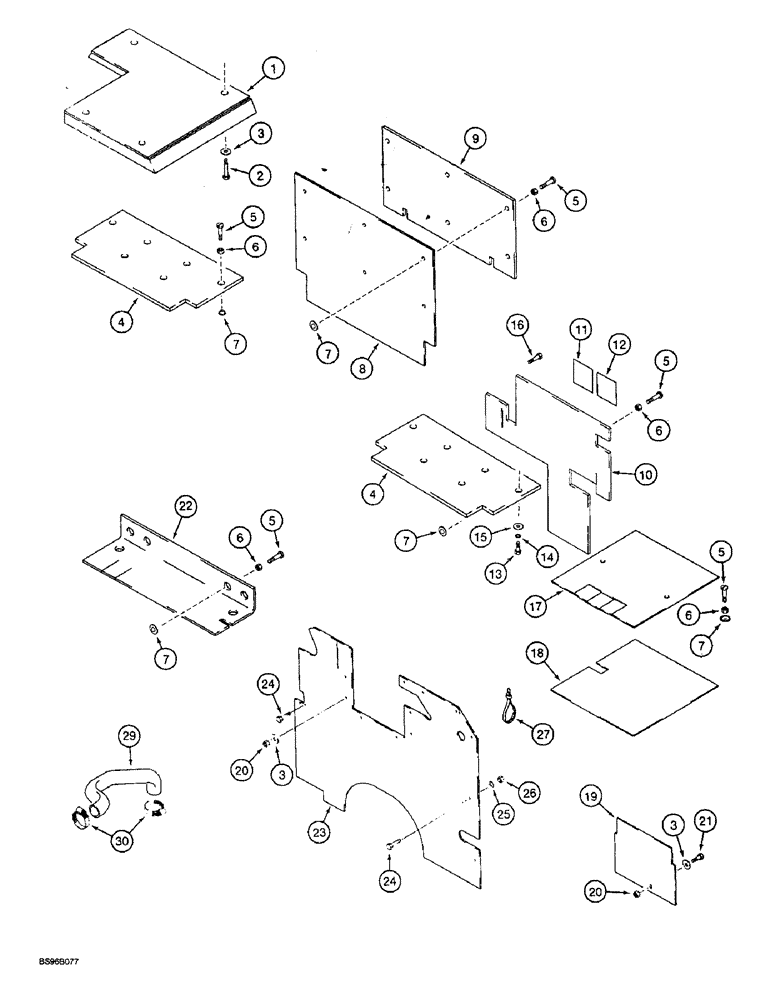

Запчасти Case 1825B (9-30) - NOISE KIT, 89DB EEC APPROVED, EUROPE (09) - CHASSIS/ATTACHMENTS

1

102965A2

INSULATOR

PAD roof

1шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

3

D136108

WASHER

11шт.

4

109289A1

NOISE PROTECTION

PAD seat plate

2шт.

5

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

19шт.

6

825-1405

NUT,M5, Cl 8

19шт.

7

E99641

CAP

19шт.

8

109736A1

INSULATOR

PAD engine firewall, outer

1шт.

9

E99949

PANEL

engine firewall, inner

1шт.

10

183757A1

PANEL

PAD heel plate

1шт.

11

259799A1

DECAL

Replaces 178666A1

1шт.

12

259803A1

DECAL

Replaces 178667A1

1шт.

13

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8 x 1-3/8

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

17

E20167

FLOOR MAT

PAD floor plate

1шт.

18

E20173

PANEL

PAD floor plate

1шт.

19

109285A1

CURTAIN

PAD battery box

1шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

7шт.

21

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

22

E20096

PANEL

PAD rear door

1шт.

23

230184A1

CURTAIN

PAD engine

1шт.

24

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

25

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 in

3шт.

29

H437006

HOSE

radiator

1шт.

30

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.
