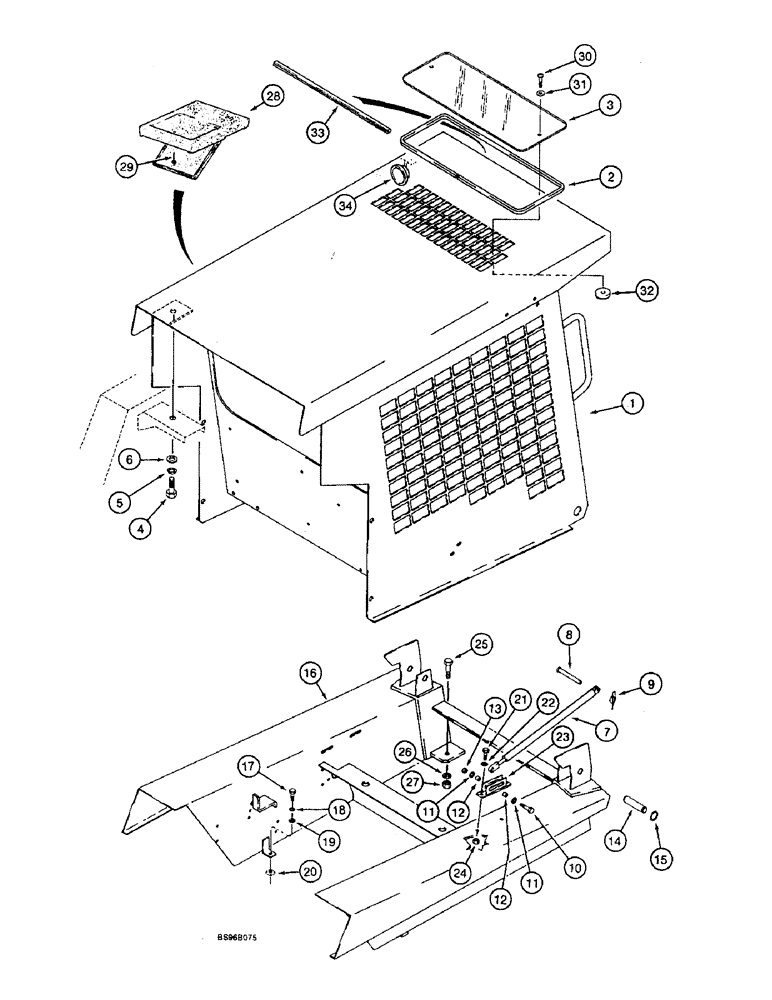

Запчасти Case 1825B (9-20) - FOPS/ROPS AND ROPS, PUNCHED (09) - CHASSIS/ATTACHMENTS

1

H674961

FRAME

FOPS/ROPS, Europe only

1шт.

1

105856A1

CAB

FRAME ROPS, Europe only

1шт.

1

104720A1

ISOLATOR

FRAME ROPS, N.A. only

1шт.

2

103863A1

SEALING STRIP

upper

1шт.

3

144267A1

WINDOW ASSY

upper

1шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

7

104620A1

SPRING

CYLINDER, used with 104720A1 and 105856A1

2шт.

7

103093A1

GAS STRUT,599mm Extended, 462mm Compressed

used with H674961

2шт.

8

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

9

H436613

COTTER PIN

cotter

2шт.

10

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

11

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

12

103563A1

SPACER

4шт.

13

232-4115

LOCK NUT,5/16"-18, GC

2шт.

14

D120704

PIN,19.05mm OD x 88mm L

pivot

2шт.

15

100-1175

SNAP RING,#75, Ext

4шт.

16

103864A2

FRAME

1шт.

17

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

18

492-11031

LOCK WASHER,5/16"

2шт.

19

H426775

WASHER

2шт.

20

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

22

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

23

103566A1

SUPPORT

2шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

25

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

26

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

27

232-4118

NUT,1/2"-13, GC

2шт.

28

R46464

CASE

BOX

1шт.

29

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

30

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

31

103777A1

SEALING WASHER

2шт.

32

E99641

CAP

2шт.

33

192239A1

PAD

head protection, German T.B.G. models

1шт.

34

E99967

REAR VIEW MIRROR

German T.B.G. models

1шт.

189659A1

KIT

KIT FOPS, machinery item

1шт.

189618A1

SET OF PARTS

KIT ROPS, machinery item

1шт.
