(9-19A) - SEAT MOUNTING AND SEAT BELT, DELUXE

Запчасти Case 1825B (9-19A) - SEAT MOUNTING AND SEAT BELT, DELUXE (09) - CHASSIS/ATTACHMENTS

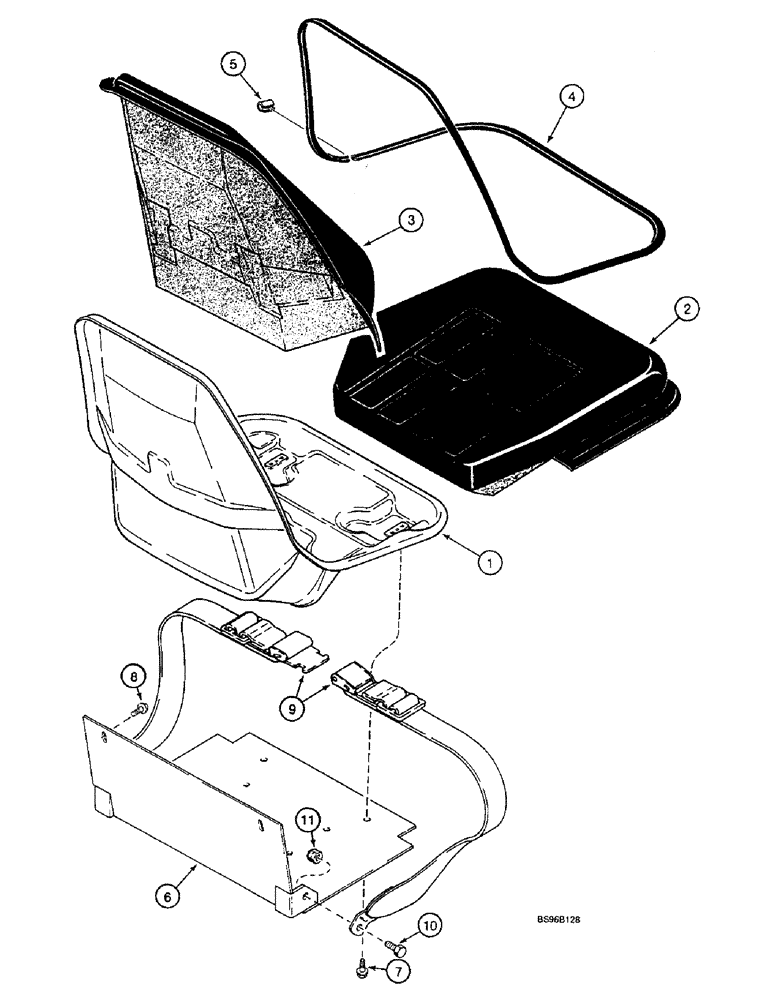

Схема запчастей Case 1825B - (9-19A) - SEAT MOUNTING AND SEAT BELT, DELUXE (09) - CHASSIS/ATTACHMENTS
3
2
7
4
8
11
5
6
9
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

238775A1

SEAT ASSY.

Incl. Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL

1шт.

2

190875A1

CUSHION, SEAT

Incl. Ref. 5

1шт.

3

190874A1

BACKREST COVER

CUSHION, Incl. Ref. 5

1шт.

4

N14614

GASKET

TRIM

1шт.

5

N7802

CLIP

KIT

1шт.

6

237905A1

SUPPORT

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

9

D133868

SAFETY BELT ,2.00" W

1шт.

9

126560A1

SAFETY BELT

48 mm, German T.U.V. models

1шт.

10

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

11

232-4118

NUT,1/2"-13, GC

2шт.
