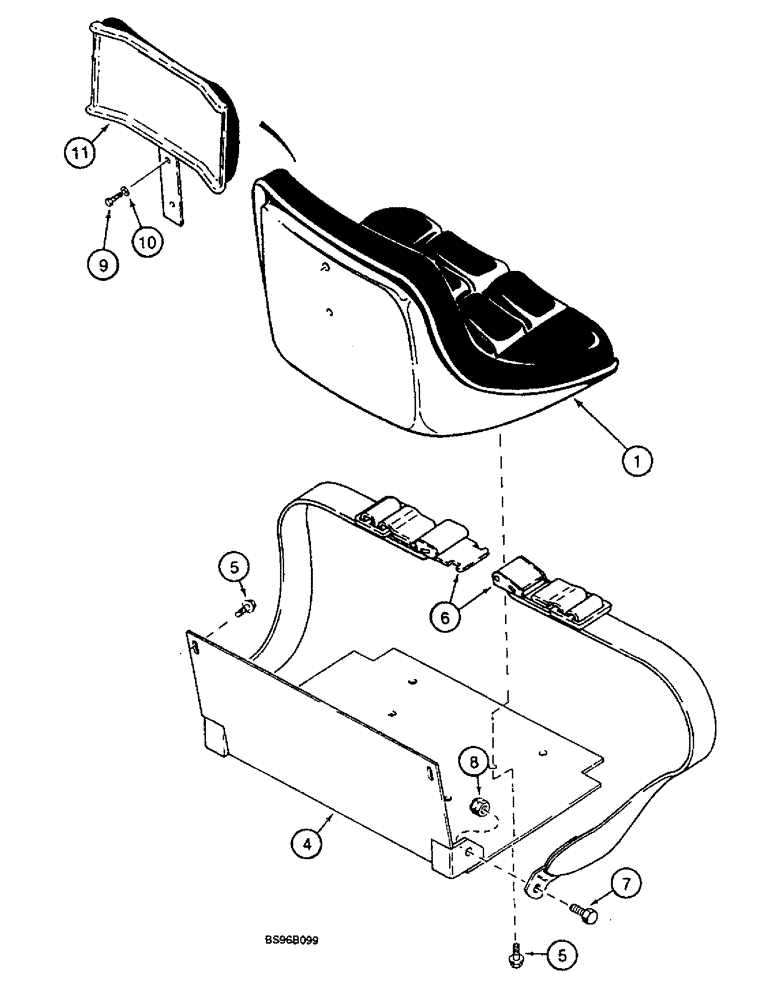

Запчасти Case 1825B (9-18) - SEAT MOUNTING AND SEAT BELT, STANDARD (09) - CHASSIS/ATTACHMENTS

1

177641A1

SEAT

Incl. Ref. 2, 3

1шт.

2

N6674

CLIP

not illustrated

2шт.

3

N14342

GASKET

TRIM, not illustrated

1шт.

4

237905A1

SUPPORT

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

6

D133868

SAFETY BELT ,2.00" W

1шт.

6

126560A1

SAFETY BELT

48 mm, German T.U.V. models

1шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

8

232-4118

NUT,1/2"-13, GC

2шт.

9

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

10

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

11

177642A1

CUSHION

PAD

1шт.

While the seat no longer has threaded holes (the nut plates were removed), there are nut plates on the backrest, 177642A1. In order to install, use a utility knife to cut the seat cover at the top of the seat to allow the backrest plate to slip into the seat. Align the threaded holes in the backrest plate with the holes in the seat back and install the hardware. This has been done this way for a while now in production. There are no other changes planned.

1шт.
