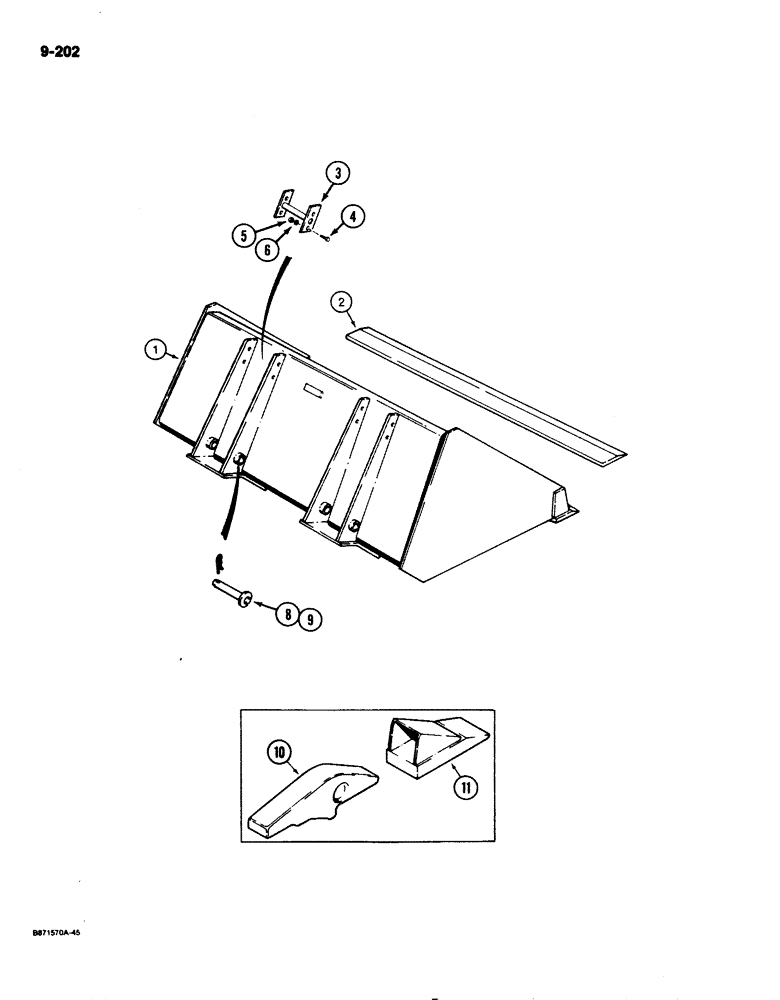

Запчасти Case 1825 (9-202) - LOADER BUCKETS, 44 INCH (1118MM) WIDE BUCKET, 49 INCH (1245MM) WIDE BUCKET (09) - CHASSIS/ATTACHMENTS

1

D138898

BUCKET

44", 1118 mm, wide, machinery item, order from the Machinery Price List

1шт.

2

D138892

EDGE, CUTTING

EDGE cutting, front

1шт.

3

D138882

PIN ASSY.

PIN weldment

2шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

7

1978738C1

HAIR PIN COTTER

retaining, Replaces 136-251

2шт.

8

D138884

PIN

loader attachment, Serial Range: bar-bucket

2шт.

1

D138867

BUCKET

49", 1245 mm, wide, machinery item, order from the Machinery Price List

1шт.

2

D138861

EDGE, CUTTING

EDGE cutting, front

1шт.

3

D61308

PIN

weldment

2шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

7

1978738C1

HAIR PIN COTTER

retaining, Replaces 136-251

2шт.

9

D138886

PIN

loader attachment, Serial Range: bar-bucket

2шт.

10

T41165

TOOTH

SHANK tooth

1шт.

11

T41166

TOOTH

POINT tooth

1шт.
