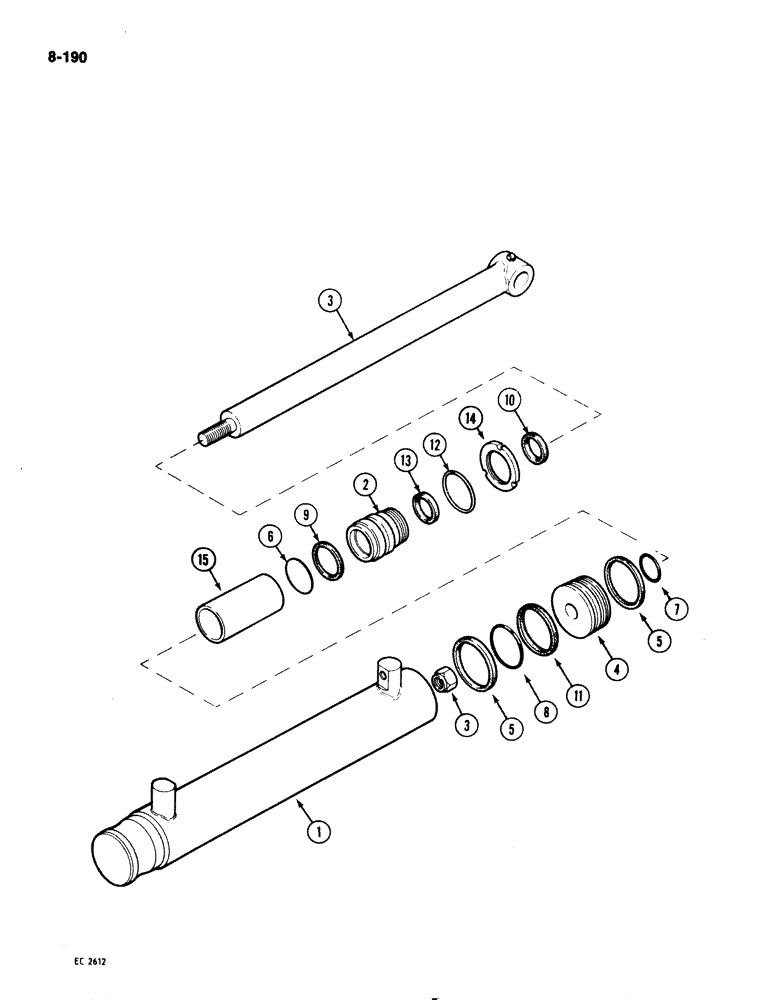

Запчасти Case 1825 (8-190) - LOADER LIFT CYLINDER (08) - HYDRAULICS

D136838

CYLINDER ASSY.

CYLINDER ASSEMBLY lift

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

N14640

GLAND

cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

ROD cylinder, includes nut

1шт.

4

N14641

PISTON

cylinder

1шт.

N14639

SEAL KIT

KIT seal, cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING piston

2шт.

6

290987R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

gland

1шт.

7

A59066

O-RING,1.239" ID x 1.379" OD

piston, inner

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING piston, outer

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER backup, gland O ring

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER rod, gland

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER outer O, Serial Range: ring-piston

1шт.

12

NSS

NOT SOLD SEPARAT

RING wear, gland

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL gland

1шт.

14

H220459

NUT

RING lock

1шт.

15

H436414

SPACER

internal stop

1шт.
