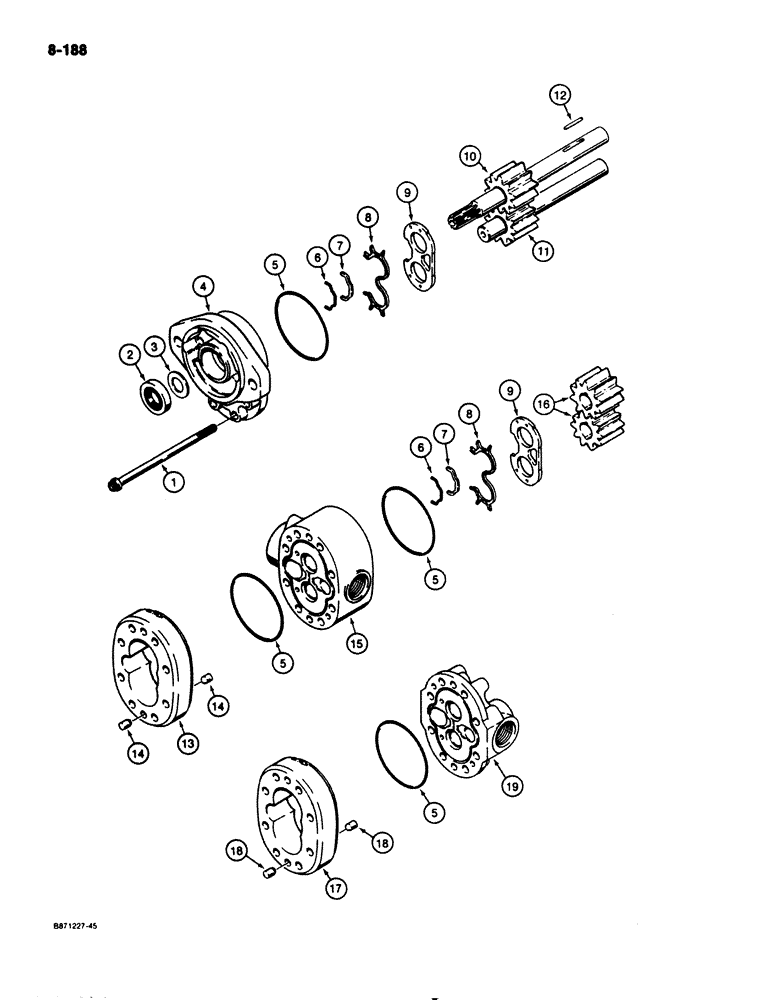

Запчасти Case 1825 (8-188) - HYDRAULIC EQUIPMENT PUMP (08) - HYDRAULICS

D136150

PUMP

ASSEMBLY hydraulic, equipment

1шт.

1

166-163

12 PT SCREW,Flg, 5/16" - 18 x 5", Gr 8

BOLT Ferry head, grade 8, 5/16" 18 NC x 5"

8шт.

2

H83733

SEAL

shaft

1шт.

3

N13135

WASHER

special, shaft seal

1шт.

4

N14632

COVER

pump, drive shaft end

1шт.

5

H758599

O-RING,2.989" ID x 3.129" OD

pump covers and center body

4шт.

6

NSS

NOT SOLD SEPARAT

SEAL molded

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL bearing

2шт.

8

NSS

NOT SOLD SEPARAT

GASKET wear plate

2шт.

9

NSS

NOT SOLD SEPARAT

PLATE wear, pump

2шт.

N14647

GEAR-SET

GEAR SET matched, drive shaft end

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR drive, pump, includes shaft

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR driven, pump, includes shaft

1шт.

12

N13443

KEY

drive gear shaft

1шт.

N13448

BODY

HOUSING ASSEMBLY gear, drive shaft end

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING gear

1шт.

14

71120

VALVE

PIN dowel, gear housing

4шт.

15

N14648

BODY

center

1шт.

16

1960556C1

GEAR

pump, port end

2шт.

17

N14649

BODY

HOUSING gear, port end

1шт.

18

71120

VALVE

PIN gear housing, port end

2шт.

19

N14650

COVER

pump, port end

1шт.

N13954

SEAL KIT

seal, includes Ref. 2 and 5 thru 9, also includes one A7982 O ring and two H755975 O rings not used in this application

1шт.
