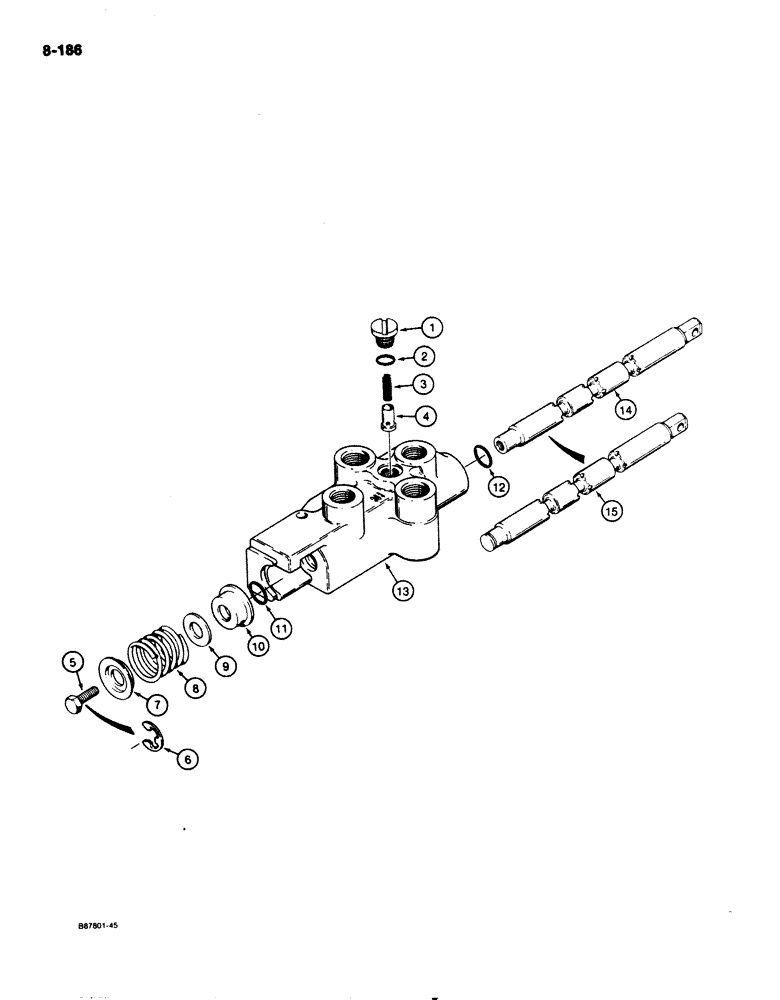

Запчасти Case 1825 (8-186) - AUXILIARY HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

D64670

VALVE

ASSEMBLY control, auxiliary hydraulic, one spool

1шт.

H47506

PLUG

ASSEMBLY load check valve

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG valve

1шт.

2

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

plug

1шт.

3

FH730374

SPRING

load check valve

1шт.

4

FH730366

PLUNGER

POPPET load check valve

1шт.

5

H428292

SCREW,1/4" - 20 x 0.972"

special, used with item 14, if used

1шт.

6

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , spool, used with item 15, if used #50, .392" Dia, E-Type

1шт.

7

F59116

WASHER

SEAT spring, outer

1шт.

8

H220517

SPRING

spool, centering

1шт.

9

H746164

WASHER

special

1шт.

10

H52902

CAP

SEAT spring, inner

1шт.

11

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

valve body, spool detent end

1шт.

12

F37887

O-RING

valve body, spool eye end

1шт.

13

NSS

NOT SOLD SEPARAT

BODY control valve

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL control valve, threaded open end, if used

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL control valve, closed end with groove, if used

1шт.
