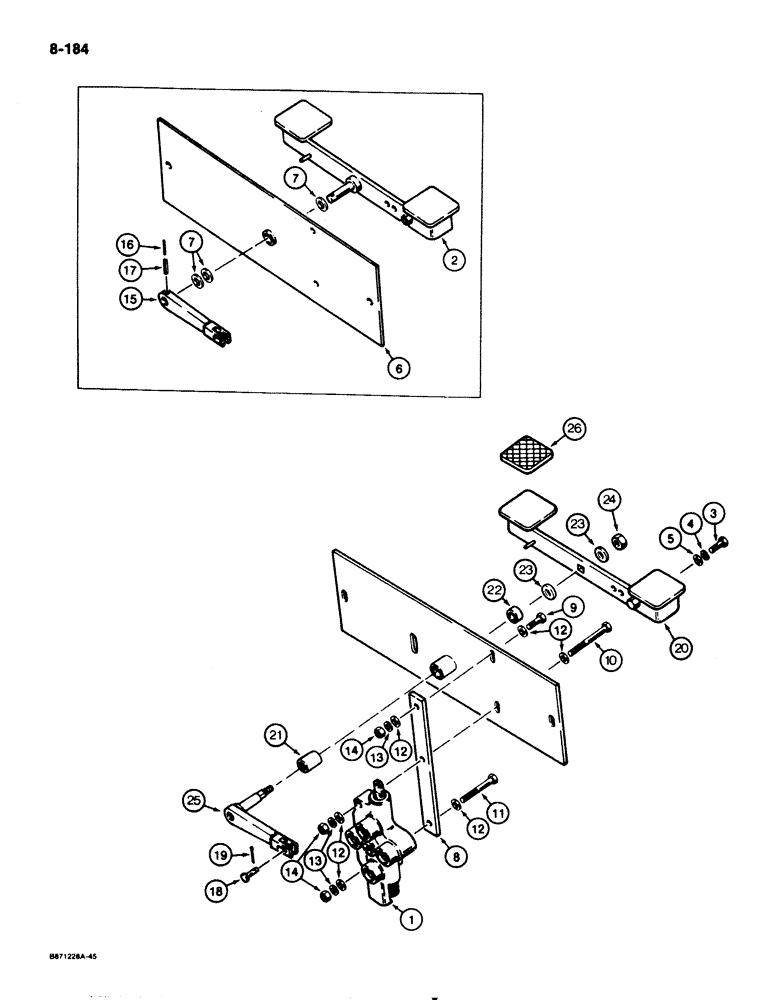

Запчасти Case 1825 (8-184) - AUXILIARY CONTROLS AND VALVE MOUNTING (08) - HYDRAULICS

1

D64670

VALVE

ASSEMBLY control, auxiliary hydraulic circuit, parts list Fig. 8 186

1шт.

2

E99930

PEDAL

control, valve

1шт.

3

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

4

892-1108

LOCK WASHER,M8

plated M8

1шт.

5

89511008

PUBLICATIONS

WASHER flat, plated, 8 mm

1шт.

6

E99933

PLATE

pedal mounting

1шт.

7

195-106

WASHER,1/2"

flat, plated, 1/2"

3шт.

8

E99928

BRACKET

valve mounting

1шт.

9

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex head, plated, 8 mm 1.25 x 25 mm, 8.8

1шт.

10

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

1шт.

11

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

hex head, plated, 8 mm 1.25 x 65 mm, 8.8

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

13

892-1108

LOCK WASHER,M8

plated M8

3шт.

14

825-1108

NUT,Hex, M8, Cl 8

hex, plated, 8 mm 1.25

3шт.

15

E99927

ARM

auxiliary control valve

1шт.

16

138-45

LOCK PIN,3/32" x 1", Slotted

PIN, 3/32" x 1", Slotted

1шт.

17

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

18

F13790

PIN

clevis, arm

1шт.

19

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

20

E99982

PEDAL

control valve

1шт.

21

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

pedal mounting plate

1шт.

22

E20213

SPACER

control valve pedal

1шт.

23

195-33

WASHER,1/2"

plain, 1/2"

2шт.

24

231-1445

NUT,5/16"-18, GB

NUT self locking, 5/16" 18 UNC

1шт.

25

E99980

ARM

auxiliary control valve

1шт.

26

E20226

PAD

non slip, control pedal, TBG, Germany

1шт.
