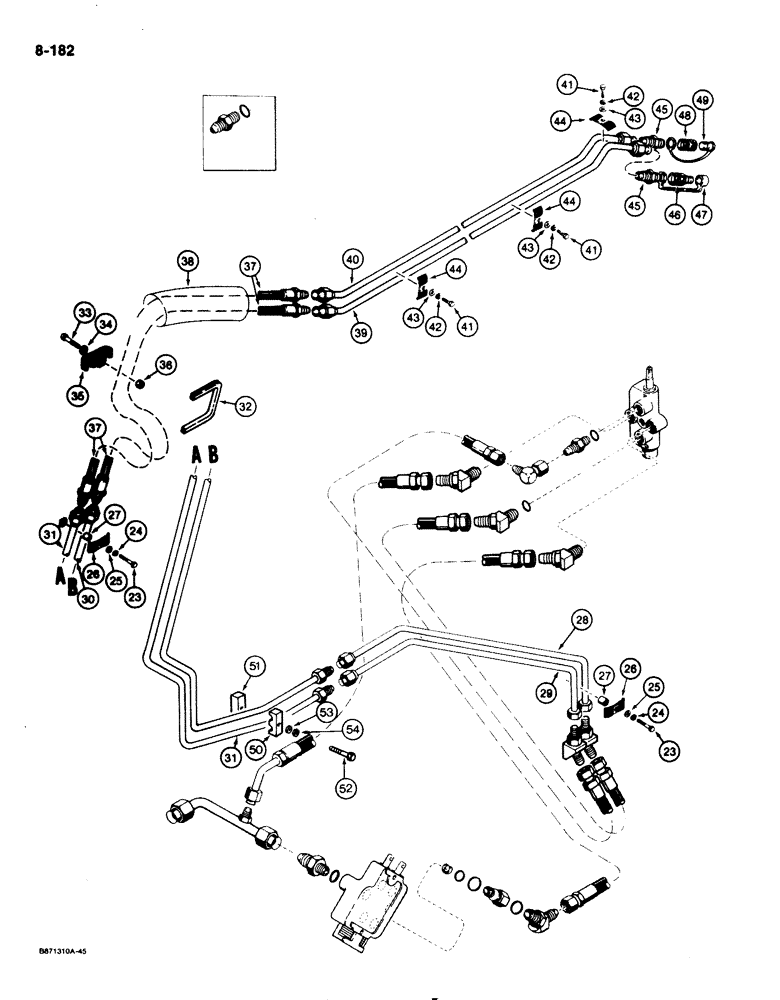

Запчасти Case 1825 (8-182) - AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

23

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

24

892-1108

LOCK WASHER,M8

plated M8

2шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

26

D135637

CLAMP

tubes, on left hand side of chassis

2шт.

27

D33551

BUSHING

SPACER clamp

2шт.

28

E99900

TUBE

auxiliary control valve hose to intermediate tube, port B

1шт.

29

E99902

TUBE

auxiliary control valve hose to intermediate tube, port A

1шт.

30

E99910

HYD TUBE

TUBE intermediate, port B

1шт.

31

E99908

HYD TUBE

TUBE intermediate, port A

1шт.

32

D38500

LINING

TRIM upper chassis, cut from F42827 bulk trim, 9 13/16" long, see below

1шт.

33

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

195-104

WASHER,3/8"

flat, plated, 3/8"

1шт.

35

D124301

CLAMP,3/4" ID

intermediate hose, upper left hand chassis

1шт.

36

131-938

FLANGE NUT,Flg, USR, 3/8"-16

hex, self locking, 3/8" 16 NC

1шт.

37

D124674

HOSE,9.53mm ID x 950mm L, SAE 100R2

intermediate, upper, 37 13/32", 950 mm, long

2шт.

38

E99986

SLEEVE

intermediate hose

1шт.

39

E20065

HYD TUBE

TUBE at quick disconnect, lower, B port of auxiliary control valve

1шт.

40

E20067

HYD TUBE

TUBE at quick disconnect, upper, A port of auxiliary control valve

1шт.

41

113-58

BOLT,Locking, 1/4" - 20 x 3/4", Gr 5, Full Thd

hex head, plated, 5/16" 18 NC x 1/2"

3шт.

42

892-1108

LOCK WASHER,M8

plated M8

3шт.

43

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

44

E20059

CLAMP

tubes, at loader lift frame

3шт.

45

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER straight

2шт.

46

D60708

COUPLING, BREAK AWAY

COUPLING quick disconnect, coupling, male

1шт.

47

E99889

LIGHT FAIRING

PLUG dust, male quick disconnect

1шт.

48

D60707

COUPLING, BREAK AWAY

COUPLING quick disconnect, female

1шт.

49

D62402

PLUG

dust, female quick disconnect

1шт.

50

D124301

CLAMP,3/4" ID

tubes to chassis, Replaces D124031

2шт.

51

E20136

PLATE

SPACER, Serial Range: tubes-chassis

2шт.

52

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

53

195-104

WASHER,3/8"

plain, plated, 3/8"

2шт.

54

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

F42827

TRIM,2946.4mm L

TRIM edge, 116", 2946 mm, long

1шт.
