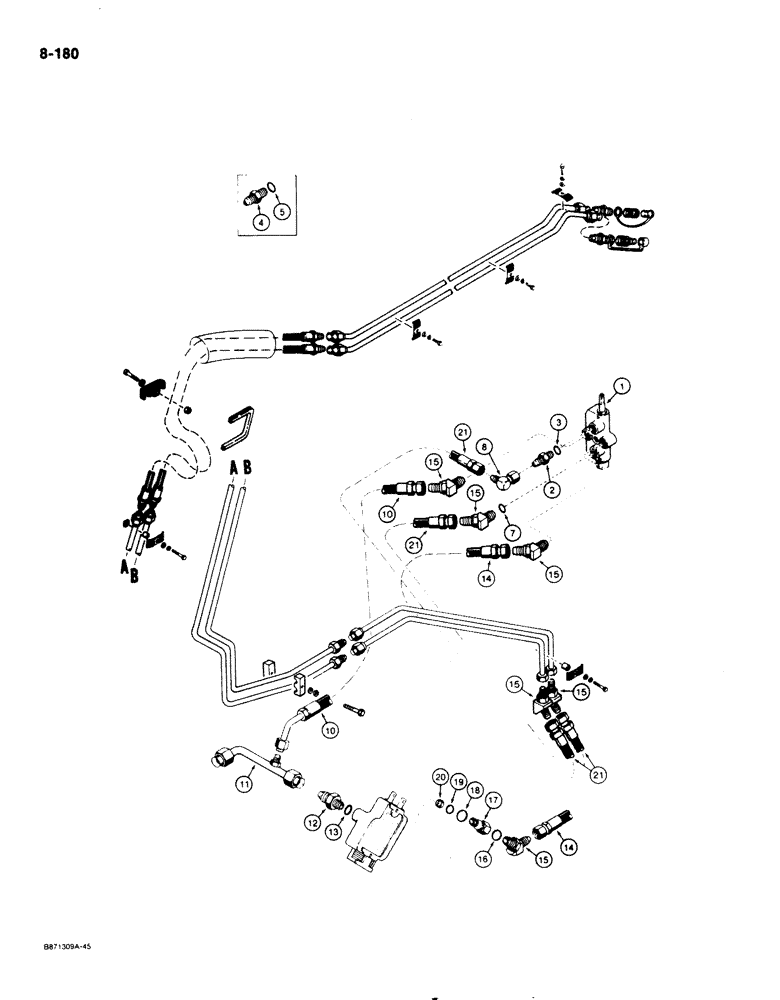

Запчасти Case 1825 (8-180) - AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D64670

VALVE

CONTROL VALVE ASSEMBLY auxiliary hydraulic circuit, parts list Fig. 8 186

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, "A" port

1шт.

3

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

connector

1шт.

4

CONNECTOR straight, "in" and "out" ports, discontinued

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

6

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

adjustable, "B" port, 45 degree

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

street, swivel, "A" port, 90 degree

1шт.

9

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Street, Adjustable, "in" and "out" ports 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

2шт.

10

E99943

HOSE

auxiliary control valve to loader control valve outlet tube, 14 3/4", 375 mmm, long

1шт.

11

E99924

HYD TUBE,19.05 mm OD x 225, 80 mm L

TUBE loader control valve outlet

1шт.

12

218-5048

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

ADAPTER straight

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

14

E99943

HOSE

loader control valve to auxiliary control valve "in" port, 14 3/4", 375 mm, long, replaces E99946

1шт.

15

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

adjustable, 45 degree

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

D61608

SLEEVE

ASSEMBLY power beyond

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE power beyond

1шт.

18

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

large

1шт.

19

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

small

1шт.

20

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING sleeve

1шт.

21

E99944

HOSE

at auxiliary control valve "A" and "B" ports, 19 11/16", 500 mm, long

2шт.

22

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

street, adjustable, 90 degree

2шт.
