Запчасти Case 1825 (8-178) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

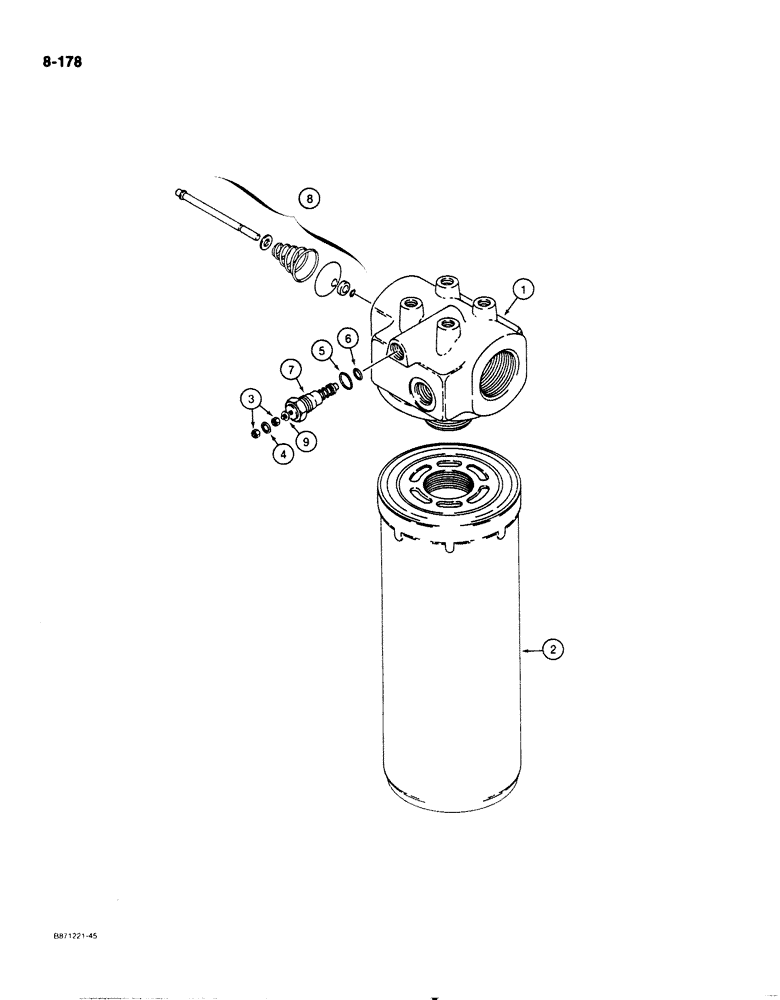

Схема запчастей Case 1825 - (8-178) - HYDRAULIC OIL FILTER (08) - HYDRAULICS
1
9
7
6
8
4
2
5
3

Артикул

Название

Примечание

Количество

D121629

FILTER, ENGINE OIL

FILTER ASSEMBLY hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter

1шт.

2

D122562

FILTER, ELEMENT

ELEMENT filter

1шт.

N13268

PRESSURE SWITCH

INDICATOR ASSEMBLY restriction, electrical

1шт.

3

129-667

NUT,#10-32, LH

2шт.

4

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

6

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Inner, small

1шт.

7

NSS

NOT SOLD SEPARAT

INDICATOR restriction, electric

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE bypass

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER identification, red/white color

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 11
