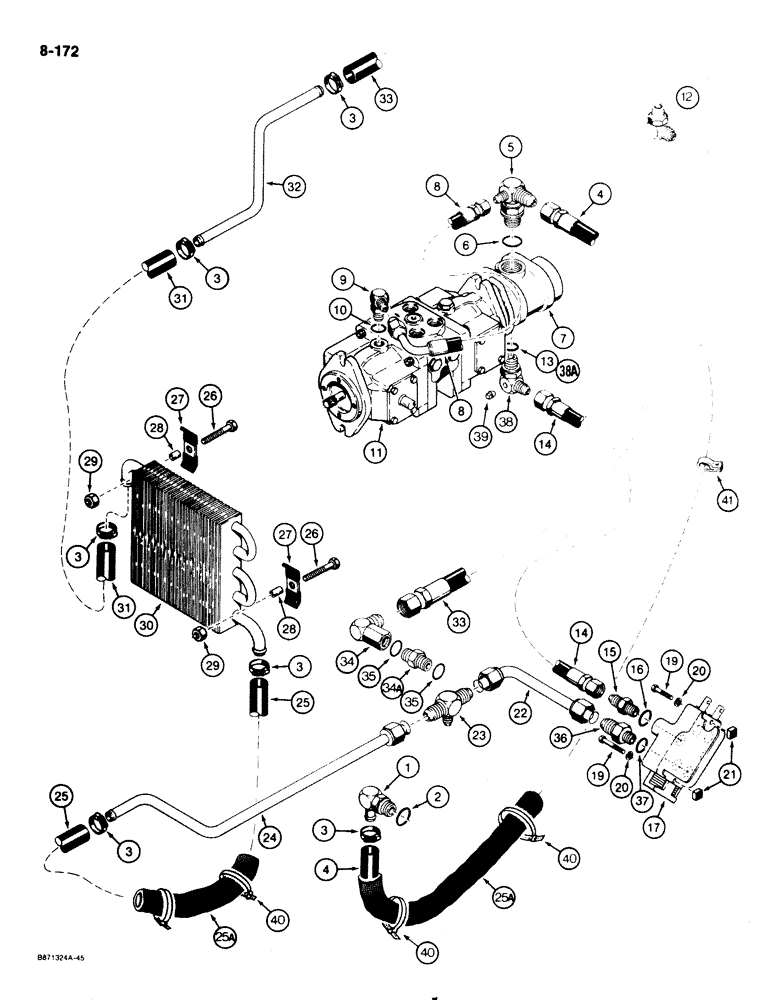

Запчасти Case 1825 (8-172) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT, SUPPLY AND RETURN LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
217-351
FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB
stem, adjustable, 90 degree
1шт.
2
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Stem fitting
1шт.
3
214-254
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
CLAMP hose
6шт.
4
D135296
HOSE
long, supply, hydraulic tank to hydraulic equipment pump, 43 5/16", 1100 mm
1шт.
5
D138166
FITTING
ELBOW special, upper port, at hydraulic equipment pump, 90 degree
1шт.
7
D136150
PUMP
ASSEMBLY hydraulic, equipment, parts list Fig. 8 188
1шт.
8
D135259
HOSE
hydraulic equipment pump to tandem pump, 16 3/4", 425 mm, long
1шт.
9
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
adjustable, 90 degree
1шт.
10
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, Elbow
1шт.
11
D134370
PUMP
ASSEMBLY tandem, parts list Fig. 6 148 and 6 150
1шт.
12
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
adjustable, 90 degree, order E20131
1шт.
13
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
elbow
1шт.
14
E99945
HOSE
hydraulic equipment pump to loader control valve, 19 3/32", 485 mm, long
1шт.
15
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR straight
1шт.
16
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
connector
1шт.
17
D139831
VALVE, CONTROL
VALVE ASSEMBLY control, loader, parts list Fig. 8 170
1шт.
19
113-111
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
2шт.
20
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
21
25-225
SQUARE NUT,Sq, 5/16"-24
square, 5/16" 18 NC
2шт.
22
NLS
NO LONGER SERVICED
TUBE loader control, Serial Range: valve-tee
1шт.
23
218-1578
TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br
male
1шт.
24
D138162
PIPE
TUBE tee to oil cooler
1шт.
25
D63986
RADIATOR HOSE,2.63" ID x 8.50", SAE 20R4 CLASS SC
or SAE 20R4 CLASS R GRADE 1A or SAE 20R4 CLASS D1, Control Valve to Oil Cooler, Cut From S118382 Bulk Hose, See Below 2.63" ID x 8.50", SAE 20R4 CLASS SC
1шт.
25a
E20286
SLEEVE
hose at oil cooler and hydraulic tank, cut from H434724 bulk hose, 486 mm, see below
2шт.
26
113-182
BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5
hex head, 5/16" 18 UNC x 1 5/8"
2шт.
27
D54416
CLAMP
at oil cooler
2шт.
28
D76195
SPACER,10.31mm ID x 15.88mm OD x 17.78mm L
clamp, at oil cooler
2шт.
29
131-651
NUT,5/16"-18, GB
NUT hex, self locking, plated, 5/16" 18 UNC
2шт.
30
D57600
COOLER
oil
1шт.
31
D95232
LARGE HOSE
HOSE oil cooler to hydraulic tank, cut from S118382 bulk hose, 3/4", 19 mm, ID x 24", 610 mm, long, see below
1шт.
32
D138165
PIPE
TUBE intermediate, oil cooler hose to hydraulic tank return hose
1шт.
33
D135471
HOSE
long, return, to hydraulic tank, 39 3/8", 1000 mm
1шт.
34
218-5231
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw
Adjustable, use with 218 5064 adapter 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw
1шт.
34a
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER straight, use with 218 5231
1шт.
35
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, 218 5231 elbow and 218 5064 adapter
1шт.
36
218-5065
HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
ADAPTER straight
1шт.
37
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
adapter
1шт.
38
E20131
FITTING
ELBOW 90 degree, special
1шт.
38a
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
elbow
1шт.
39
353-200
PLUG
taper, square head, 1/8 NPT, use with E20131
1шт.
40
L18337
CABLE TIE,9.95"-12.1" lg
STRAP tie, nylon, 15 inch
4шт.
41
D41654
CLAMP
P type, Serial Range: hose-frame
1шт.
S118382
HOSE,0.75" ID x 240.00", SAE 100R4
0.75" ID x 240.00" Bulk, SAE 100R4
1шт.
H434724
LOOM
SLEEVE bulk, 1000 mm long
1шт.
Выбрано товаров: 45
