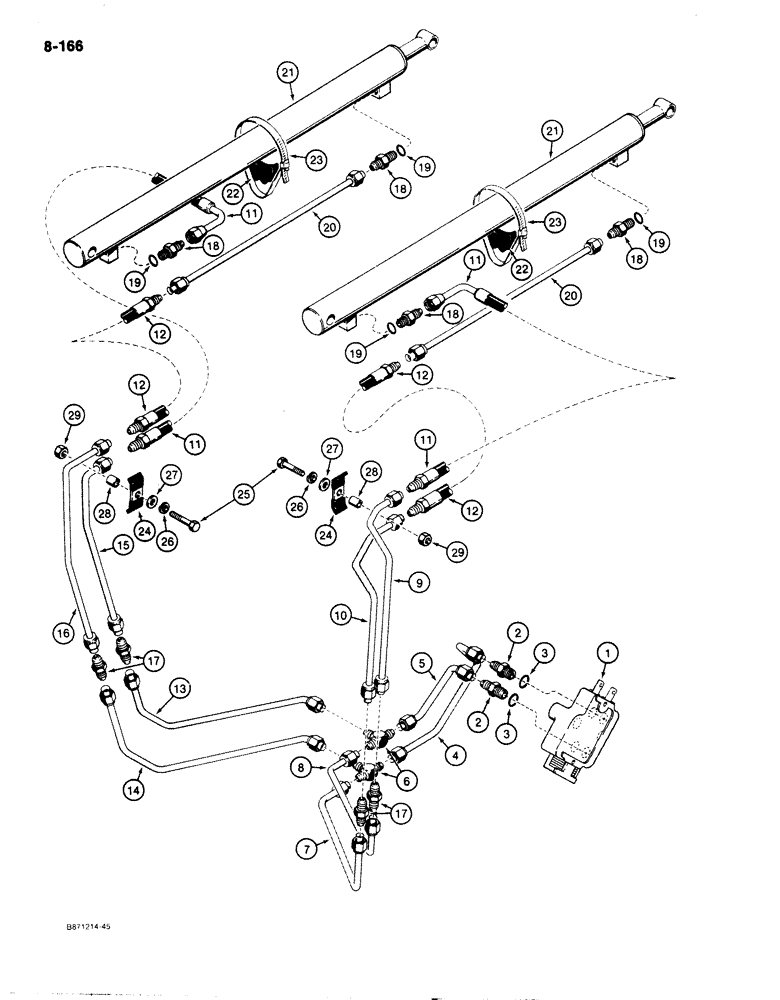

Запчасти Case 1825 (8-166) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D139831

VALVE, CONTROL

VALVE ASSEMBLY control, loader, parts list Fig. 8 170, mounting hardware on Fig. 8 172

1шт.

1

D139831

VALVE, CONTROL

VALVE ASSEMBLY control, loader, parts list Fig. 8 170, mounting hardware on Fig. 8 172

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

4

D122513

TUBE

at control valve, port A

1шт.

5

D122511

TUBE

at control valve, port B

1шт.

6

218-594

TEE,3/4"-16, 37 Degree

male

2шт.

7

D122519

TUBE

intermediate, to rod end of right hand lift cylinder

1шт.

8

D122521

TUBE

intermediate, to closed end of right hand lift cylinder

1шт.

9

136942

TUBE to closed end of right hand lift cylinder

1шт.

10

D136946

TUBE

to rod end of right hand lift cylinder

1шт.

11

D139490

HOSE

to closed end of lift cylinder, 13 3/8", 340 mm long

2шт.

12

E99973

HOSE

to rod end of lift cylinder, 17 3/4", 450 mm long

2шт.

13

D122515

TUBE

crossover, to closed end of left hand lift cylinder

1шт.

14

D122517

TUBE

crossover, to rod end of left hand lift cylinder

1шт.

15

D136944

TUBE

to closed end of left hand lift cylinder

1шт.

16

D136948

TUBE

to rod end of left hand lift cylinder

1шт.

17

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight

4шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR straight

4шт.

20

D139488

PIPE

TUBE to rod end of lift cylinder

2шт.

21

D136838

CYLINDER ASSY.

CYLINDER ASSEMBLY lift, parts list Fig. 8 190

2шт.

22

D38648

BLOCK

INSULATOR rubber, lift cylinder

2шт.

23

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP lift cylinder

2шт.

24

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

tube, right hand and left hand side of chassis

2шт.

25

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

95-6

WASHER,3/8"

flat, 3/8"

2шт.

28

D76208

SPACER

clamp

2шт.

29

131-938

FLANGE NUT,Flg, USR, 3/8"-16

hex, self locking, 3/8" 16 NC

2шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.
