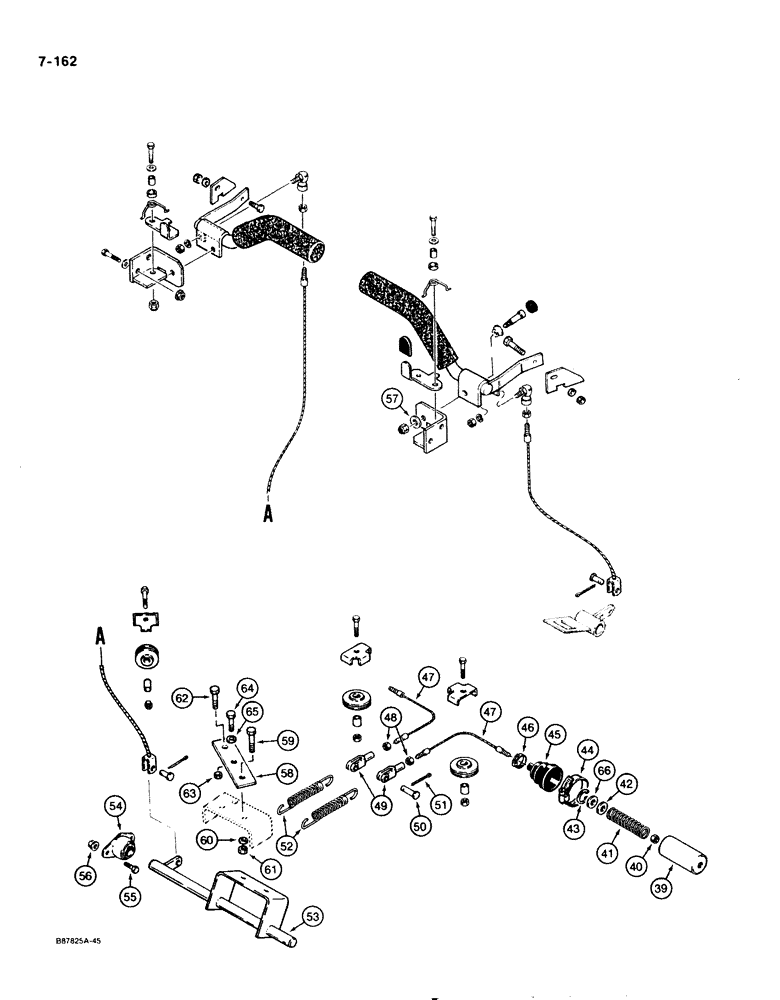

Запчасти Case 1825 (7-162) - PARKING LATCH AND OPERATORS RESTRAINTS (07) - BRAKES

39

D64228

PIN,25.45mm OD x 53.34mm L

lower cable, continued from page 7 160

2шт.

40

129-141

JAM NUT,Jam, 1/4"-20, G5

2шт.

41

D91040

SPRING

lower cable

2шт.

42

95-6

WASHER,3/8"

flat, 3/8"

2шт.

43

A37550

SNAP RING,1.00", Int, #100

Ring, Snap, 1.00", Int, #100

2шт.

44

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

adjustable, boot to latch pin #28, 1.31/2.25 Type F Worm

2шт.

45

D70018

BOOT

rubber, seal

2шт.

46

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adjustable, cable end to boot #4, 0.25/0.62 Type F Worm

2шт.

47

D137768

CABLE

at center pulleys, lower

2шт.

48

129-121

NUT,1/4"-28, G5

2шт.

49

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS adjustable, 1/4" 28 NF

2шт.

50

141-52

CLEVIS PIN,1/4" x .770"

PIN clevis, plated, 1/4"

2шт.

51

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

52

D127347

SPRING

shaft

2шт.

53

D137708

SHAFT

parking brake

1шт.

54

D139039

BEARING ASSY,19mm ID

BEARING shaft mounting, replaces L48412

2шт.

55

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

56

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" 18 NC

4шт.

57

H426775

WASHER

flat, special, at mounting bracket

2шт.

58

CASE20014

LATCH

BAR park latch lockout

1шт.

59

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

60

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

1шт.

61

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self locking, 5/16" 18 NC

1шт.

62

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

63

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

64

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

65

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

66

H435266

SPACER

lower cable spring

2шт.
