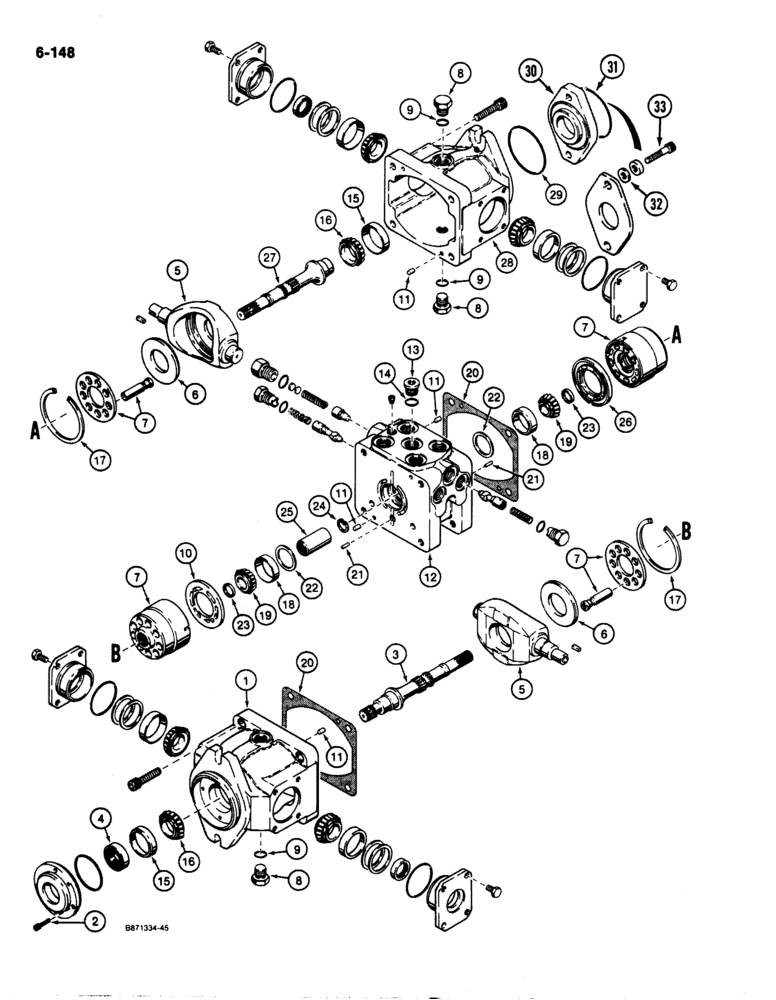

Запчасти Case 1825 (6-148) - TANDEM PUMP (06) - POWER TRAIN

D134370

PUMP

ASSEMBLY tandem, Includes: Ref. 1 - 23 & 34 - 44 on Figure 6-150

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING pump, rear

1шт.

2

N14499

BOLT

socket head, special

4шт.

3

N14482

SHAFT

rear

1шт.

4

N14483

OIL SEAL

rear shaft

1шт.

5

N14484

PLATE

swash

2шт.

6

N14485

WASHER

PLATE wear

2шт.

7

N14486

BLOCK

ASSEMBLY cylinder, component parts are not serviced separately

2шт.

8

214389

PLUG,3/4" - 16 ORB

Includes Ref. 9 Hex Hd, 3/4"-16 ORB

3шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

10

N14487

PLATE

valve, rear

1шт.

11

NLS

NO LONGER SERVICED

valve block to front and rear housings

4шт.

12

N14488

BODY

BLOCK valve

1шт.

13

86625138

PLUG,7/18" - 14

Includes Ref. 14 Hex Soc, 7/8"-14 ORB

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug

1шт.

15

N14497

BEARING, CUP

CUP bearing, rear and front housing

2шт.

16

N14496

ROLLER BEARING

BEARING tapered roller, rear and front housing

2шт.

17

N14510

RING

retaining

2шт.

18

651814R1

BEARING CUP

CUP bearing, valve block

2шт.

19

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING tapered roller, valve block

2шт.

19

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

20

N14501

GASKET

GASKET valve block

2шт.

21

H351445

PIN

locating, valve block

2шт.

22

R26293

SHIM

bearing cup

1шт.

23

N14512

SPACER

bearing

2шт.

24

N14489

RING

snap, coupling

1шт.

25

N14490

COUPLING, BREAK AWAY

COUPLING valve block

1шт.

26

N14491

PLATE

valve, front

1шт.

27

N14492

SHAFT

front

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING pump, front

1шт.

29

N14495

O-RING

front housing

1шт.

30

N14493

PLATE

ADAPTER front housing

1шт.

31

D77050

O-RING,3.239" ID x 3.379" OD

front adapter

1шт.

32

F23114

WASHER

special, front adapter

2шт.

33

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT hex socket head 3/8" 16 NC x 1 3/4"

2шт.
