(4-132) - ROTATING BEACON, NOT AVAILABLE IN NORTH AMERICA

Запчасти Case 1825 (4-132) - ROTATING BEACON, NOT AVAILABLE IN NORTH AMERICA (04) - ELECTRICAL SYSTEMS

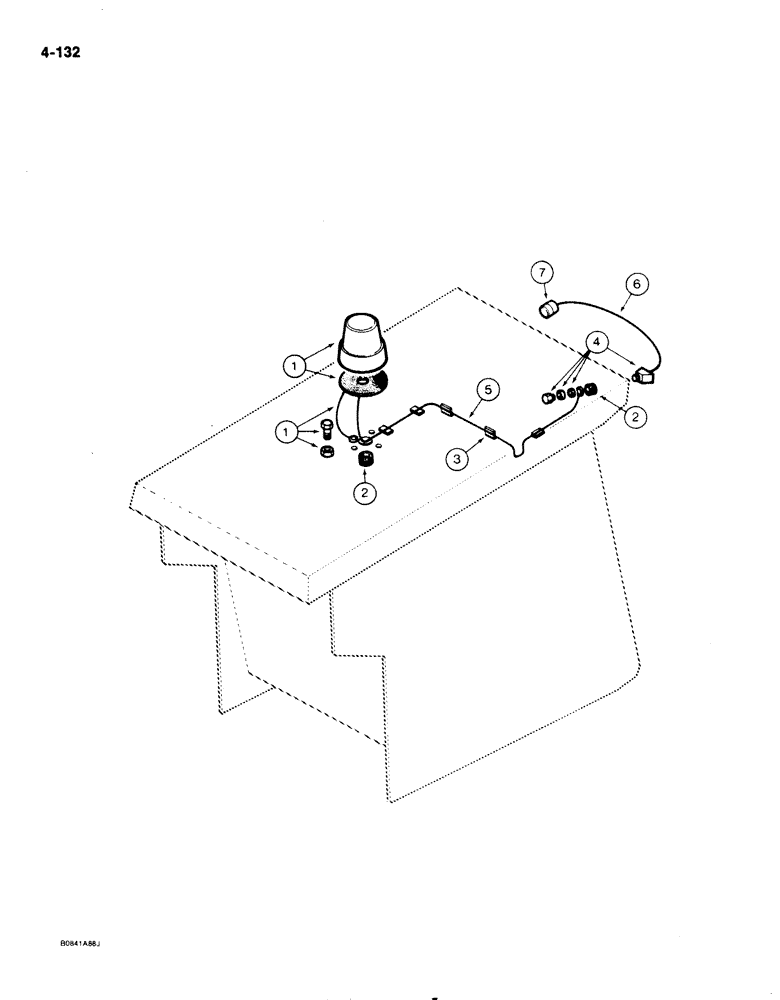

Схема запчастей Case 1825 - (4-132) - ROTATING BEACON, NOT AVAILABLE IN NORTH AMERICA (04) - ELECTRICAL SYSTEMS
2
6
3
2
7
5
1
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

E99128

BEACON ROTATING

component parts are not serviced separately

1шт.

2

E98688

GROMMET

wire

2шт.

3

E84910

CLIP

wire

5шт.

4

E98697

BEACON SWITCH

SWITCH rotating beacon

1шт.

5

E20253

ELECTRICAL WIRE

WIRE beacon to switch, 400 mm

1шт.

6

E20254

ELECTRICAL WIRE

WIRE switch to terminal, 125 mm

1шт.

7

K203992

IGNITION SWITCH

SWITCH ignition, includes two keys, washer and nut

1шт.
