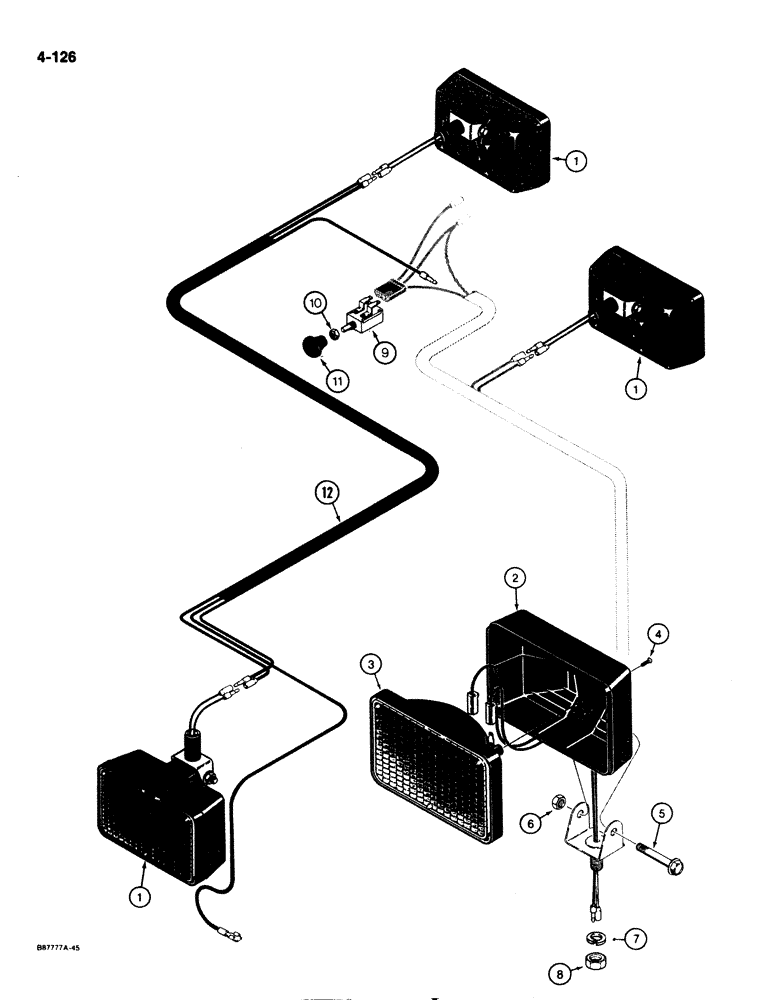

Запчасти Case 1825 (4-126) - WORK LAMPS AND WIRING (04) - ELECTRICAL SYSTEMS

1

D126237

HEADLIGHT

LAMP ASSEMBLY flood

3шт.

2

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

3

N13125

LAMP

BULB sealed beam

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW pan head, self tapping, No. 8 x 1/2"

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, plated, 5/16" 18 NC

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

9

D74330

SWITCH

lamp

1шт.

10

N7557

NUT

hex, special, 3/8" 24 NF

1шт.

11

D95781

BUTTON

KNOB lamp switch

1шт.

12

D134075

HARNESS

lamps and horn

1шт.
