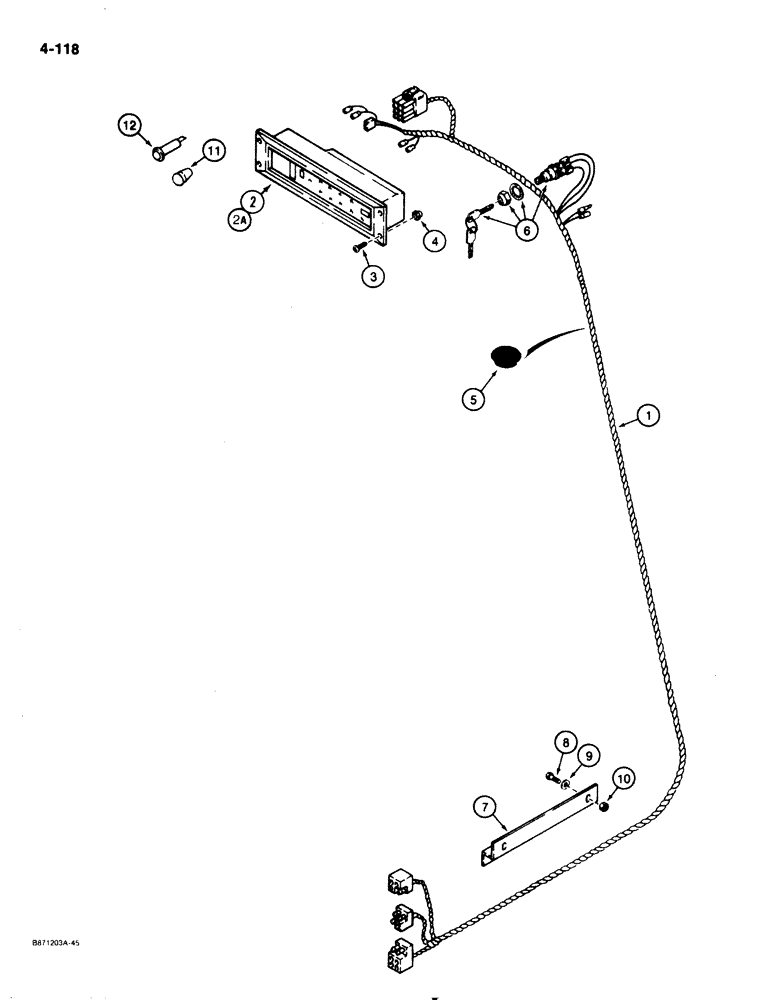

Запчасти Case 1825 (4-118) - FRONT HARNESS AND INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

D136819

HARNESS

front

1шт.

2

D139479

PANEL, INSTRUMENTS

CLUSTER instrument, diesel, component parts are not serviced separately

1шт.

2a

D139479

PANEL, INSTRUMENTS

CLUSTER instrument, gasoline, component parts are not serviced separately

1шт.

3

182-537

SCREW,Cross Pan Hd, #10 - 32 x 1"

MACHINE SCREW Phillips head, No. 10 32 NF x 1"

4шт.

4

D122634

ISOLATOR,12.7mm OD x 14.1mm L

RETAINER mounting screw

4шт.

5

D93716

PLUG,73.mm ID x 88.9mm OD

3", 76 mm, diameter, plastic

2шт.

6

K203992

IGNITION SWITCH

SWITCH ignition, includes two keys, washer and nut

1шт.

REF 6: KEY FOR THIS SWITCH IS K962338

1шт.

7

D136931

ANGLE

COVER front harness

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

9

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

10

231-1445

NUT,5/16"-18, GB

NUT hex, self-locking, plated, 5/16" 18 NC

2шт.

11

353-407

PLUG,Dome, .687" hole, Nylon

nylon, 11/16"

1шт.

12

H603852

LIGHT

LAMP warning, glow plug activation, diesel

1шт.
