(4-112) - DISTRIBUTOR, GASOLINE MODELS

Запчасти Case 1825 (4-112) - DISTRIBUTOR, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

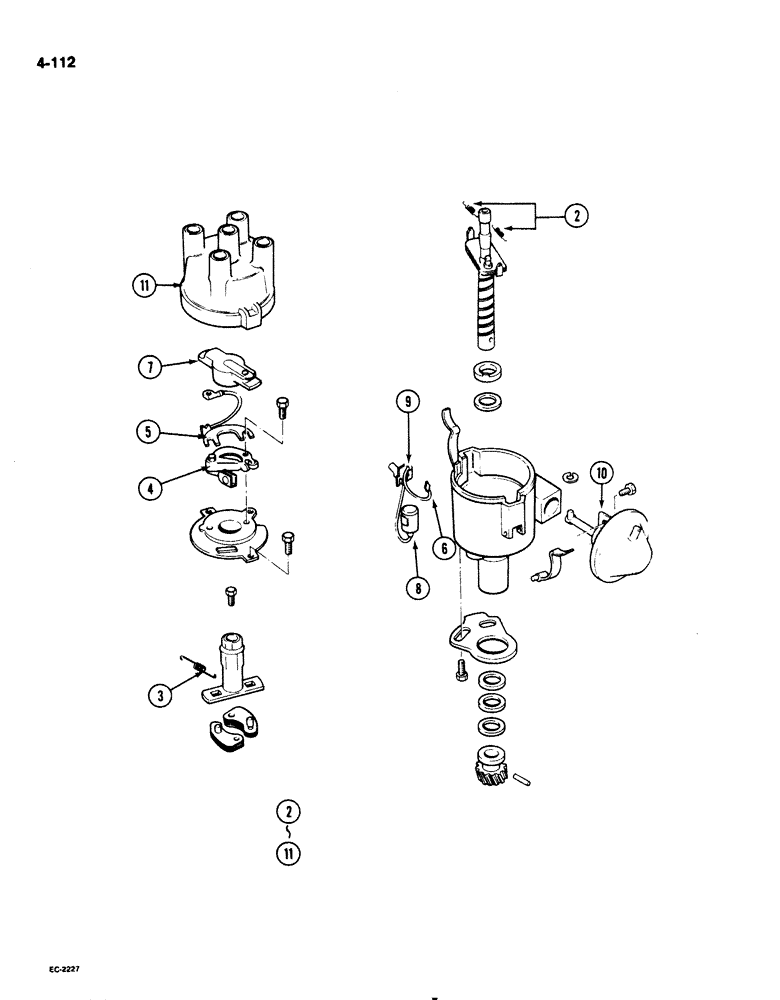

Схема запчастей Case 1825 - (4-112) - DISTRIBUTOR, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS
9
2
4
2
5
11
8
3
11
6
7
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1972268C1

DISTRIBUTOR

ASSEMBLY engine, Includes: Ref. 2 - 11

1шт.

2

1972395C1

SPRING

weight

2шт.

3

1972397C1

SPRING

hair

1шт.

4

1972269C1

POINT

breaker

1шт.

5

1959641C1

CABLE RETAINER

HOLDER distributor

1шт.

6

1959642C1

ELECTRICAL WIRE

LEAD wire

1шт.

7

1972271C1

ROTOR

distributor

1шт.

8

1972272C1

CONDENSER

distributor

1шт.

9

1959643C1

TERMINAL CONNECTOR

TERMINAL distributor

1шт.

10

1972273C1

UNIT

VACUUM distributor advance

1шт.

11

1972274C1

CAP

distributor

1шт.
