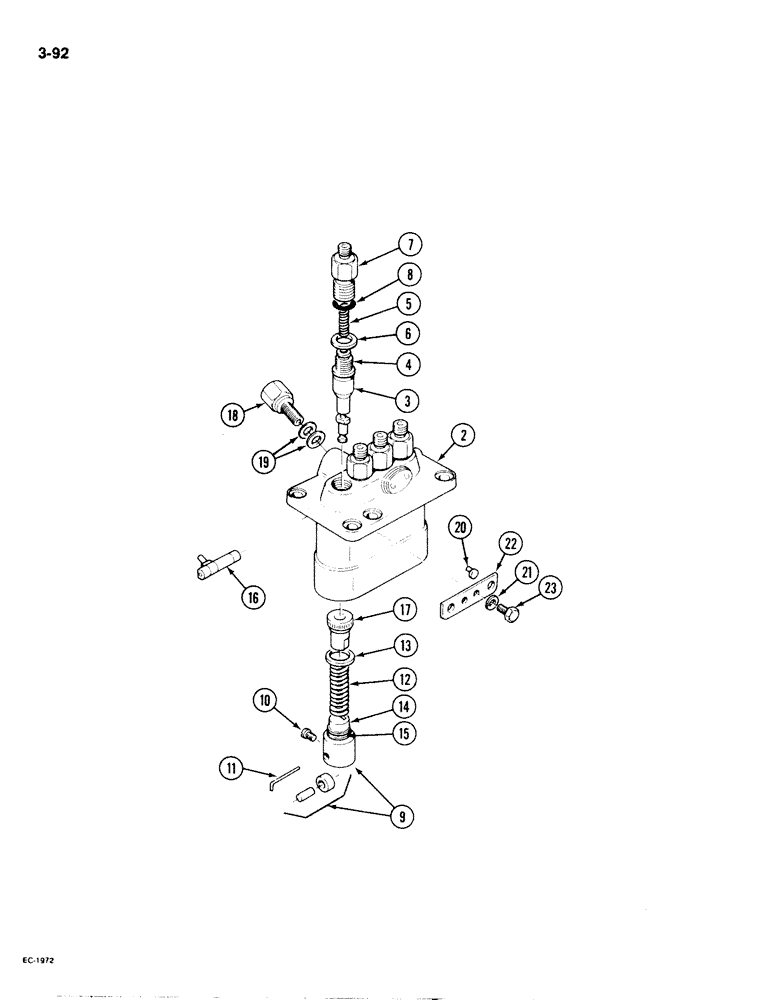

Запчасти Case 1825 (3-92) - FUEL INJECTION PUMP, DIESEL MODELS (03) - FUEL SYSTEM

1959449C1

PUMP

ASSEMBLY injection, Includes: Ref. 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING injection pump, order pump assembly 1959449C1

1шт.

3

1959529C1

PLUNGER ASSY.

ELEMENT pump

4шт.

4

1959530C1

VALVE

delivery

4шт.

5

1959531C1

SPRING

delivery valve

4шт.

6

1959532C1

GASKET

delivery valve

4шт.

7

1959533C1

HOLDER

delivery valve

4шт.

8

1959534C1

O-RING

delivery valve

4шт.

9

1959535C1

TAPPET

pump, component parts, not serviced separately

4шт.

10

1959536C1

PIN

tappet guide

4шт.

11

1959537C1

PIN

clamp

1шт.

12

1959538C1

SPRING

plunger

4шт.

13

1959539C1

SEAT

spring, upper

4шт.

14

1959540C1

SEAT

spring, lower

4шт.

15

1959541C1

SHIM

tappet

1шт.

16

1959542C1

RACK

control

1шт.

17

1959543C1

SLEEVE

control

4шт.

18

1959551C1

SCREW

adjusting

1шт.

19

1959552C1

WASHER

GASKET adjusting screw

2шт.

20

1959546C1

COLLAR

plate

2шт.

21

1959547C1

SPRING WASHER

lock

2шт.

22

1959548C1

PLATE

adjusting

1шт.

23

1959549C1

BOLT

adjusting plate

2шт.
