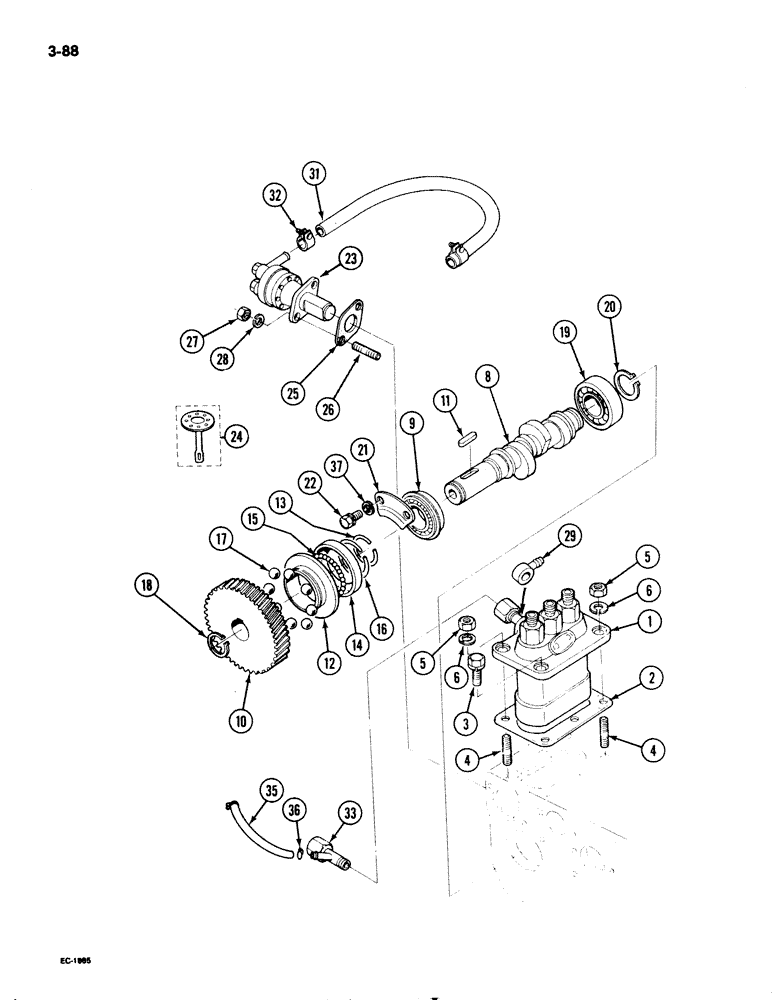

Запчасти Case 1825 (3-88) - INJECTION PUMP DRIVE, DIESEL MODELS (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
1959449C1
PUMP
ASSEMBLY injection, see Fig. 3-92
1шт.
2
1959453C1
SHIM
ASSEMBLY injection pump, Includes: Ref. 2 - 3
1шт.
2
1959454C1
SHIM
injection pump
2шт.
2
1959455C1
SHIM
injection pump
3шт.
3
1959456C1
BOLT
with lock washer, injection pump mounting
4шт.
4
1959265C1
STUD
M10
2шт.
6
1959171C1
SPRING WASHER
lock
2шт.
1959469C1
CAMSHAFT
ASSEMBLY fuel pump drive, Includes: Ref. 8 - 18
1шт.
8
1959470C1
CAMSHAFT
fuel pump drive
1шт.
9
1959460C1
BALL BEARING
BEARING ball
1шт.
10
1959471C1
GEAR
injection pump
1шт.
11
1959462C1
KEY
feather
1шт.
12
1959463C1
SLEEVE
governor
1шт.
13
1959464C1
RING, SNAP
RING retaining, governor sleeve
1шт.
14
1959472C1
CASE
governor ball
1шт.
15
1959466C1
BALL
small, governo
30шт.
16
1959467C1
RING, SNAP
RING retaining, governor ball case
1шт.
17
1959468C1
BALL
large, governor
8шт.
18
1959308C1
RING, SNAP
RING snap, external
1шт.
19
1959473C1
BALL BEARING
BEARING ball
1шт.
20
1959474C1
RING, SNAP
RING snap, external
1шт.
21
1959475C1
PLATE
fuel camshaft stop
1шт.
22
1959477C1
BOLT
with lock washer, stop plate
2шт.
1959478C1
PUMP
ASSEMBLY fuel, Includes: Ref. 24
1шт.
24
1959479C1
DIAPHRAGM
fuel pump
1шт.
25
1959480C1
GASKET
fuel pump
1шт.
26
1959481C1
STUD
fuel pump mounting
2шт.
27
1959205C1
NUT
cover stud, M6
2шт.
28
1959206C1
SPRING WASHER
lock
2шт.
29
1959483C1
FITTING
JOINT eye
1шт.
1959484C1
PIPE,8 mm ID, 13 mm OD, 190 mm Length
TUBE ASSEMBLY fuel, Includes: Ref. 31 - 32
1шт.
31
NSS
NOT SOLD SEPARAT
TUBE fuel
1шт.
32
1959486C1
CLIP
CLAMP tube, includes hardware
2шт.
33
1959487C1
HEATED GLASS
VALVE jet start
1шт.
1959488C1
PIPE
TUBE ASSEMBLY jet start, Includes: Ref. 35 - 36
1шт.
35
NSS
NOT SOLD SEPARAT
TUBE jet start
1шт.
36
1959490C1
CLAMP
tube
2шт.
37
1959206C1
SPRING WASHER
lock
2шт.
Выбрано товаров: 39
