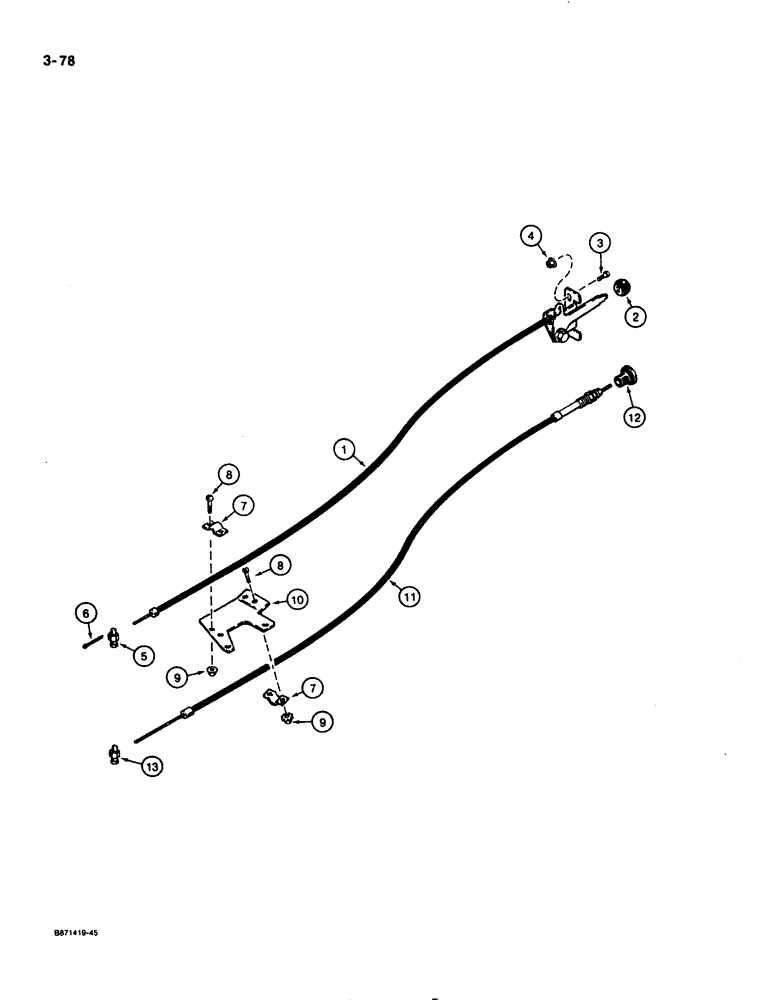

Запчасти Case 1825 (3-78) - ENGINE CONTROLS, DIESEL MODELS (03) - FUEL SYSTEM

1

D121231

CABLE

throttle control

1шт.

2

H244434

KNOB

throttle control cable

1шт.

3

163-15

SCREW,Hex, #10 - 24 x 5/8"

machine, hex head, plated, No. 10 24 NC x 5/8"

2шт.

4

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT with lock washer, plated, No. 10 24 NC

2шт.

5

E20993

PIVOT

throttle cable, Replaces D92852

1шт.

6

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

7

E20291

CLAMP

cables to plate, replaces D81500

2шт.

8

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

machine, pan head slotted, No. 10 24 NC x 1/2"

4шт.

9

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT with lock washer, plated, No. 10 24 NC

4шт.

10

D122051

PLATE

cables

1шт.

11

D122111

CABLE

fuel shut off

1шт.

12

D91273

KNOB

fuel shut off cable

1шт.

13

L32208

CLAMP

PIVOT fuel shut off cable

1шт.
