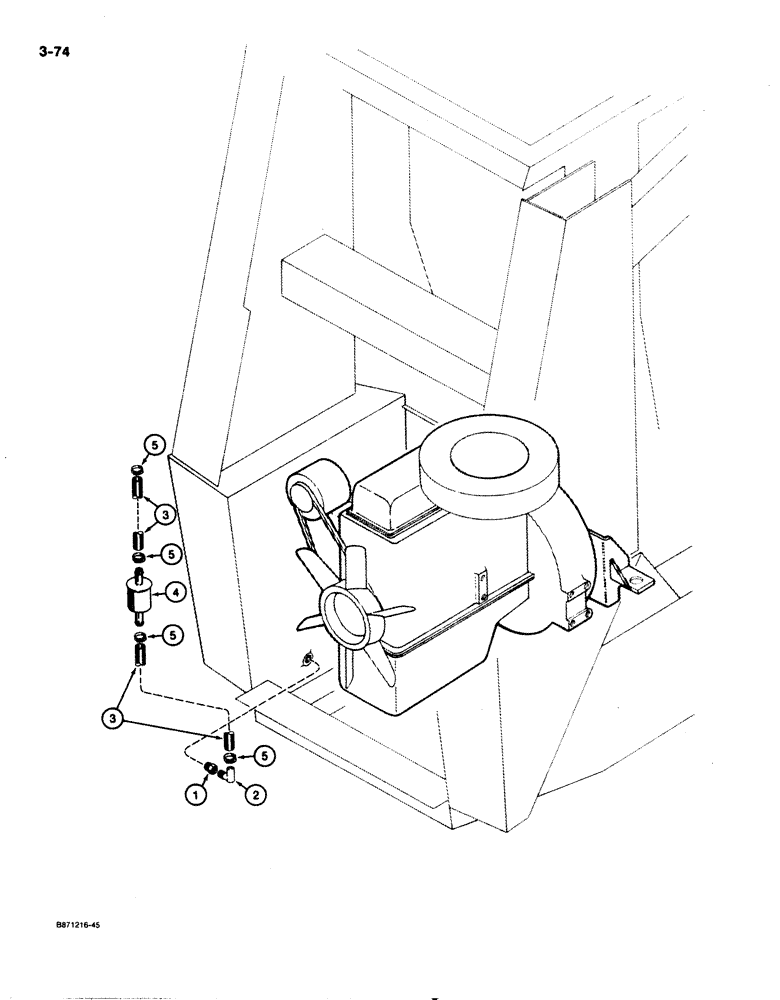

Запчасти Case 1825 (3-74) - FUEL FILTER AND FUEL LINES TO ENGINE, GASOLINE MODELS (03) - FUEL SYSTEM

1

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

3/8" x 1/4" NPT

1шт.

2

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

barb, 90 degree

1шт.

3

D51735

FUEL HOSE

HOSE long, fuel supply, cut from D52518 bulk hose, see below, 1/4", 6 mm, ID x 9", 229 mm

2шт.

4

L79756

FILTER, FUEL

FILTER fuel

1шт.

5

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adjustable #4, 0.25/0.62 Type F Worm

4шт.

D52518

INTAKE AIR HOSE,0.25" ID x 17.50", SAE 30R1 or SAE 30R3

0.25" ID x 17.50", SAE 30R1 or SAE 30R3

1шт.
