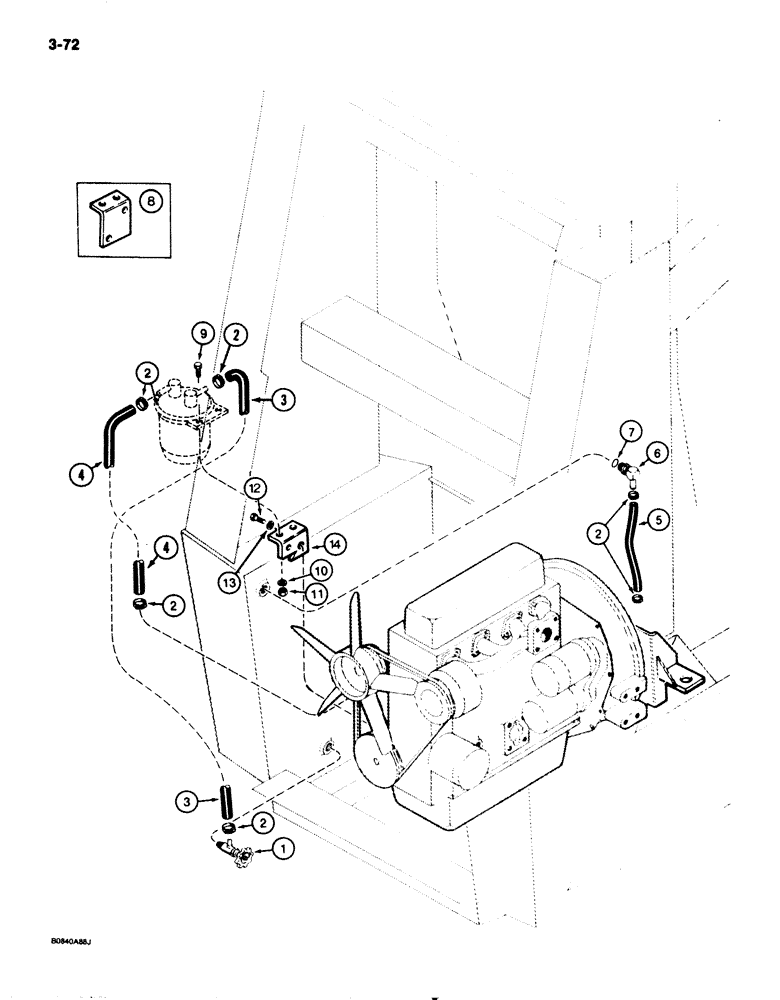

Запчасти Case 1825 (3-72) - FUEL FILTER MOUNTING AND FUEL LINES TO ENGINE, DIESEL MODELS (03) - FUEL SYSTEM

1

H434805

VALVE

fuel shutoff

1шт.

2

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP adjustable, hoses

6шт.

3

E20229

FUEL HOSE

HOSE reservoir to fuel filter, cut from 427683C2 bulk hose, see below, 3/8", 10 mm, ID x 13 3/4", 350 mm long

1шт.

4

E20138

HOSE,9.5 mm ID x 475.00 mm, SAE 30R1

Fuel Filter to Engine, Cut from 427683C2 Bulk Hose, See Below 9.5 mm ID x 475.00 mm, SAE 30R1

1шт.

5

E61336

FUEL HOSE,6.30 mm ID x 635.00 mm, SAE 30R1

- Fuel return 6.30 mm ID x 635.00 mm, SAE 30R1

1шт.

6

217-369

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/2" - 20 Male ORB

stem, adjustable, 90 degree, Includes: Ref. 7

1шт.

8

D134670

BRACKET

mounting, fuel filter, order E20225

1шт.

9

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

hex head, plated, 5/16" 18 NC x 1"

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

E20225

BRACKET

mounting fuel filter

1шт.

427683C2

HYDRAULIC HOSE,6.35 mm ID BULK, SAE 30R6 or SAE 30R7

HOSE bulk, 3/8", 10 mm, ID x 50 ft, 15 m, long

1шт.

7

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, stem fitting

1шт.
