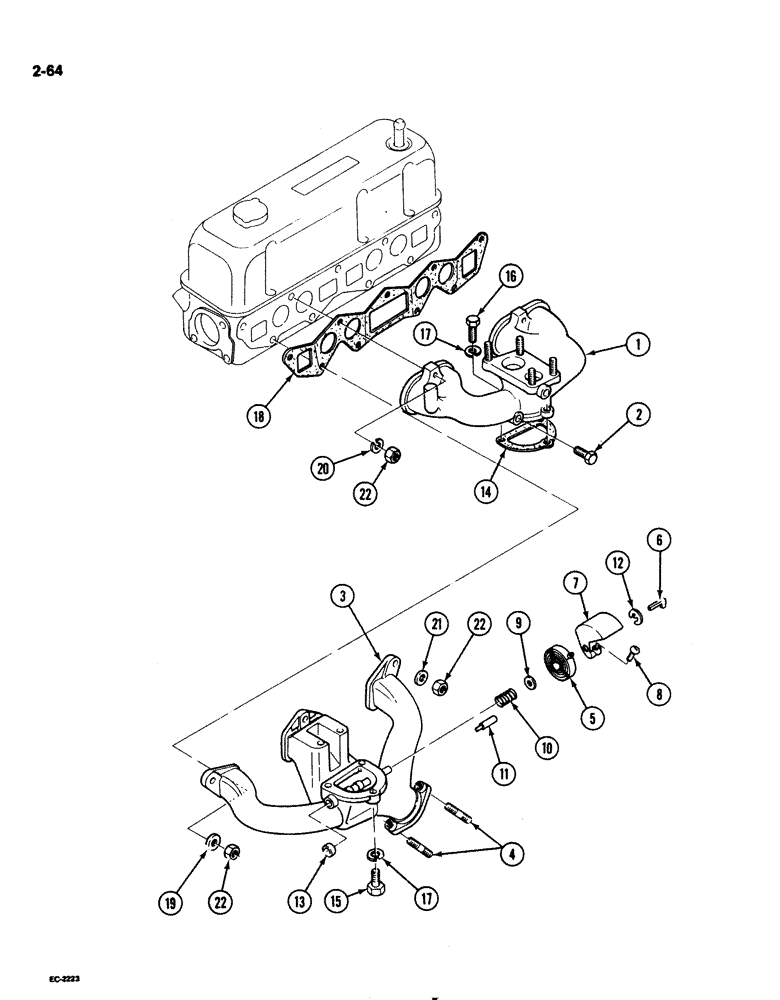

Запчасти Case 1825 (2-64) - MANIFOLDS, GASOLINE MODELS (02) - ENGINE

1

1972185C1

MANIFOLD

intake

1шт.

2

221-844

PLUG,Hex Soc, 1/2"-14

hex socket head, 1/2 inch NPT

1шт.

3

1972186C1

MANIFOLD

exhaust

1шт.

4

1972187C1

STUD

exhaust tube mounting

2шт.

5

1972188C1

SPRING

heat control thermostat

1шт.

6

1972189C1

BUCKET TOOTH KEY

KEY counterweight

1шт.

7

1972190C1

WEIGHT

heat control counter

1шт.

8

30479R1

SCREW,Cross Pan Hd, M5 x 16

counterweight mounting, M5 x 16 mm

1шт.

9

1972191C1

WASHER

heat control

1шт.

10

1972192C1

SPRING

heat control stop

1шт.

11

1972193C1

PIN

heat control spring

1шт.

12

1972323C1

STUD

RING E type, snap

1шт.

13

30478R1

PLUG,M10, Tapered

10 mm tapered cup, select use

1шт.

13

1960039C1

DOWEL

PLUG welch, select use

1шт.

14

1972194C1

MANIFOLD GASKET

intake to exhaust manifold

1шт.

15

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

hex head, intake to exhaust manifold, M6 x 25 mm

1шт.

17

892-1106

LOCK WASHER,M6

plated M6

3шт.

18

1972195C1

CYLINDER HEAD GASKET

manifold to cylinder head

1шт.

19

1972196C1

YOKE

WASHER flat, manifold

4шт.

20

892-1108

LOCK WASHER,M8

plated M8

5шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

22

825-1408

NUT,M8, Cl 8

9шт.

16

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

Timing chain cover Hex, M6 x 40, 8.8

2шт.
