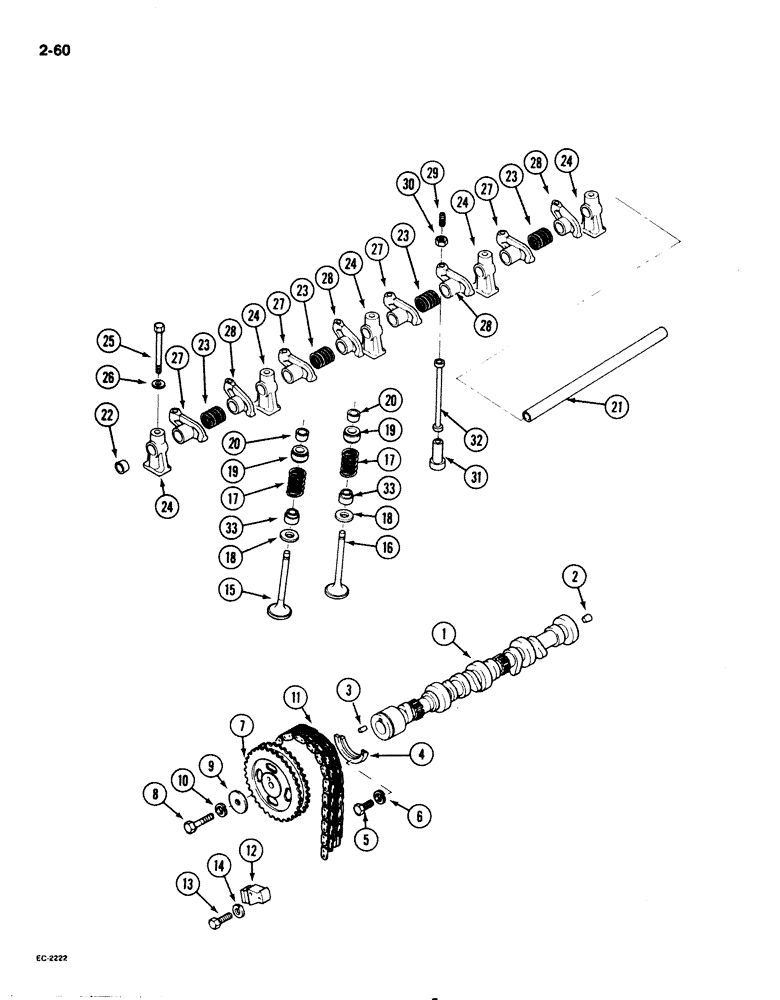

Запчасти Case 1825 (2-60) - CAMSHAFT AND VALVE MECHANISM, GASOLINE MODELS (02) - ENGINE

1

1972166C1

CAMSHAFT

ASSEMBLY engine, Includes: Ref. 2 - 3

1шт.

2

1960038C1

DOWEL

PLUG taper

1шт.

3

1972167C1

DOWEL

cam gear

1шт.

4

1972168C1

LARGE PLATE

PLATE camshaft locating

1шт.

5

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

hex head, plated, 6 mm 1 x 16 mm, 8.8

2шт.

6

892-1106

LOCK WASHER,M6

plated M6

2шт.

7

1972169C1

PINION

SPROCKET camshaft

1шт.

8

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

hex head, plated, 10 mm 1.5 x 40 mm, 8.8

1шт.

9

1972170C1

WASHER

camshaft

1шт.

10

892-1110

LOCK WASHER,M10

WASHER lock, plated, 10 mm

1шт.

11

1972171C1

CHAIN (AG)

CHAIN camshaft

1шт.

12

1972172C1

TENSIONER

chain

1шт.

13

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

14

892-1106

LOCK WASHER,M6

plated M6

2шт.

15

1972238C1

VALVE

intake

4шт.

16

1972239C1

VALVE

exhaust

4шт.

17

1972173C1

VALVE SPRING

SPRING valve

8шт.

18

1972174C1

SEAT, VALVE

SEAT valve spring

8шт.

19

1972175C1

HOLDER

RETAINER valve spring

8шт.

20

1972176C1

SEAT, VALVE

KEEPER valve

16шт.

1972240C1

SHAFT

ASSEMBLY rocker, Includes: Ref. 21 - 22

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT rocker

1шт.

22

1972242C1

PLUG

expansion

2шт.

23

1972177C1

VALVE SPRING

SPRING rocker shaft inside

4шт.

24

1972178C1

BRACKET

rocker shaft

5шт.

25

1972179C1

BOLT

rocker shaft bracket

5шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

27

1972243C1

LEVER

intake valve rocker

4шт.

28

1972244C1

LEVER

exhaust valve rocker

4шт.

29

1972180C1

BOLT,M8 x 1 x 35mm

SCREW valve rocker adjusting

8шт.

30

1972181C1

NUT

adjusting screw lock

8шт.

31

1972182C1

SUPPORT

LIFTER valve

8шт.

32

1972183C1

PUSH ROD

ROD push

8шт.

33

1972184C1

OIL SEAL

valve oil

8шт.
