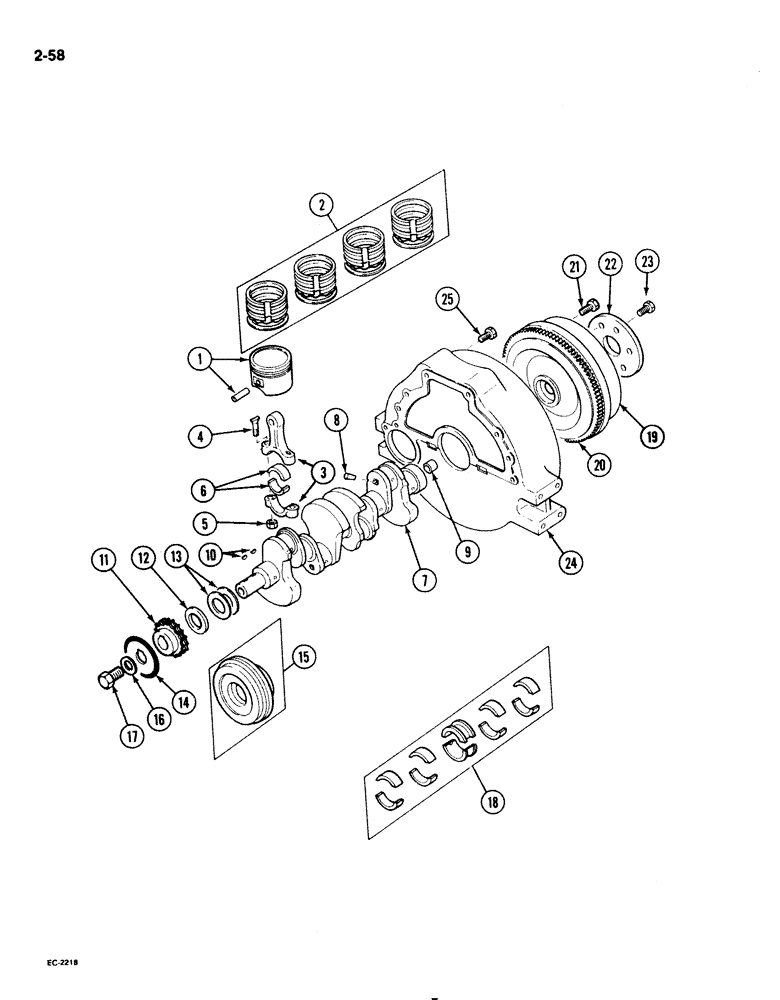

Запчасти Case 1825 (2-58) - PISTONS, CRANKSHAFT AND FLYWHEEL, GASOLINE MODELS (02) - ENGINE

1

1972148C1

PISTON

SET with pin, standard

4шт.

1

1972300C1

PISTON

SET with pin, 0.5 mm oversize

4шт.

1

1972301C1

PISTON

SET with pin, 1.0 mm oversize

4шт.

2

1972149C1

RING, PISTON

RING SET piston, standard, for 4 pistons

1шт.

2

1972302C1

RING

SET piston, 0.5 mm oversize, for 4 pistons

1шт.

2

1972303C1

RING

SET piston, 1.0 mm oversize, for 4 pistons

1шт.

1972233C1

ROD

ASSEMBLY connecting, Includes: Ref. 3 - 6

4шт.

3

NSS

NOT SOLD SEPARAT

ROD connecting

4шт.

4

1972234C1

BOLT

connecting rod

8шт.

5

1972235C1

NUT

connecting rod bolt

8шт.

6

1972236C1

BUSHING

connecting rod, standard

8шт.

6

1972304C1

BUSHING

connecting rod, 0.08 mm undersize

8шт.

6

1972305C1

BUSHING

connecting rod, 0.12 mm undersize

8шт.

6

1972306C1

BUSHING

connecting rod, 0.25 mm undersize

8шт.

6

1972307C1

BUSHING

connecting rod, 0.50 mm undersize

8шт.

6

1972308C1

BUSHING

connecting rod, 0.75 mm undersize

8шт.

7

1972150C1

CRANKSHAFT

ASSEMBLY engine

1шт.

8

1972151C1

PLUG

taper

4шт.

9

1972152C1

BUSHING

pilot

1шт.

10

1972327C1

KEY

woodruff

2шт.

11

1972153C1

PINION

SPROCKET crankshaft

1шт.

12

1972154C1

WASHER

crankshaft packing

1шт.

13

1972155C1

BLOCK

SHIM crankshaft sprocket

1шт.

14

1972156C1

DISC

SLINGER crankshaft oil

1шт.

15

1972157C1

PULLEY

crankshaft

1шт.

16

1972158C1

WASHER

pulley bolt

1шт.

17

1972159C1

BOLT

crankshaft pulley

1шт.

18

1972160C1

BEARING SET

crankshaft, standard

1шт.

18

1972309C1

KIT

BEARING SET crankshaft, 0.02 mm undersize

1шт.

18

1972310C1

KIT

BEARING SET crankshaft, 0.25 mm undersize

1шт.

18

1972311C1

BEARING SET

crankshaft, 0.50 mm undersize

1шт.

18

1972312C1

BEARING SET

crankshaft, 0.75 mm undersize

1шт.

18

1972313C1

BEARING SET,53.667 mm ID x 68 mm OD x 23 mm

crankshaft, 1.00 mm undersize

1шт.

1972161C1

FLYWHEEL

ASSEMBLY crankshaft, Includes: Ref. 19 - 20

1шт.

19

NSS

NOT SOLD SEPARAT

FLYWHEEL crankshaft

1шт.

20

1972237C1

PINION

GEAR ring, flywheel

1шт.

21

1972163C1

BOLT

flywheel

6шт.

22

1972164C1

ADAPTER

ADAPTOR flywheel

1шт.

23

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex head, plated, 8 mm 1.25 x 25 mm, 8.8

6шт.

24

1972165C1

HOUSING

flywheel

1шт.

25

30662R2

BOLT

flywheel housing M8 x 25 mm

6шт.
