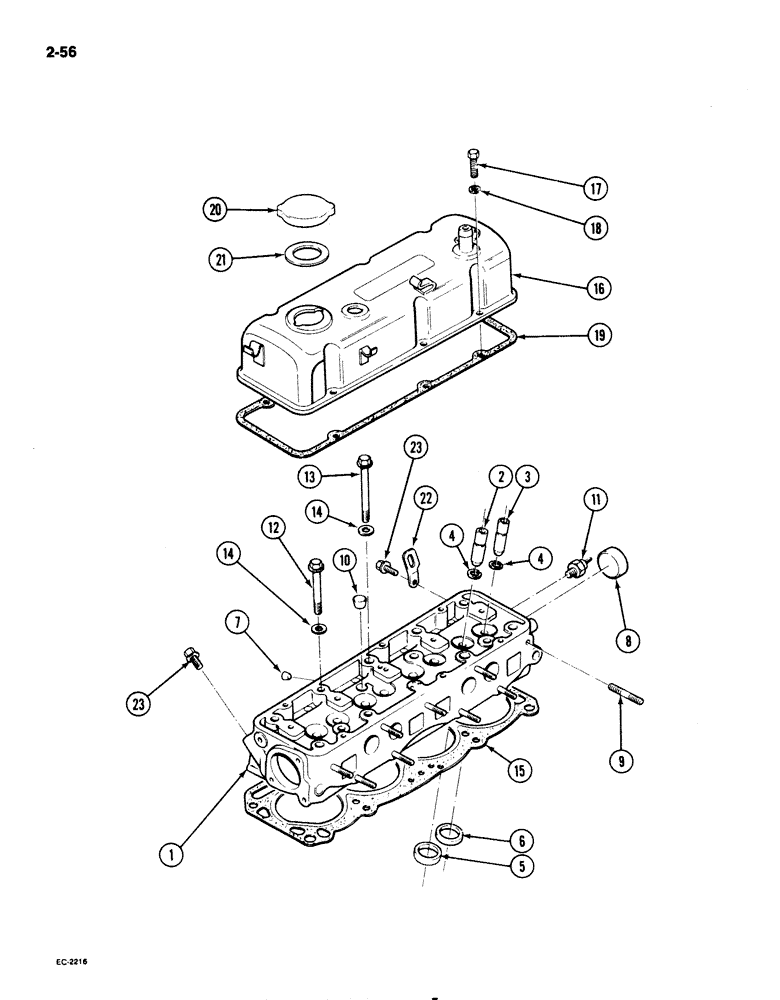

Запчасти Case 1825 (2-56) - CYLINDER HEAD AND COVER, GASOLINE MODELS (02) - ENGINE

1

1972122C1

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, Includes: Ref. 2-10

1шт.

2

1972123C1

GUIDE

intake valve

4шт.

2

1972298C1

GUIDE

intake valve, 0.2 mm oversize

4шт.

3

1972124C1

GUIDE

exhaust valve

4шт.

3

1972299C1

GUIDE

exhaust valve, 0.2 mm oversize

4шт.

4

1972125C1

SEALING RING

RING valve guide snap

8шт.

5

1972126C1

INSERT

intake valve

4шт.

5

1972296C1

INSERT

intake valve, 0.5 mm oversize

4шт.

6

1972127C1

INSERT

exhaust valve

4шт.

6

1972297C1

INSERT

exhaust valve, 0.5 mm oversize

4шт.

7

1972330C1

PLUG

taper

1шт.

8

1972231C1

PLUG

welch

1шт.

9

1972323C1

STUD

manifold

9шт.

10

1972128C1

PLUG

cylinder head blind

4шт.

11

1972129C1

IGNITION SWITCH

SWITCH - thermostat

1шт.

12

1972130C1

BOLT

cylinder head

9шт.

13

1972131C1

BOLT

cylinder head to oil gallery

1шт.

14

1972132C1

WASHER

cylinder head bolt

10шт.

15

1972133C1

CYLINDER HEAD GASKET

cylinder head

1шт.

16

1972134C1

COVER

valve rocker

1шт.

17

31006R1

SCREW,Cross Pan Hd, M6 x 16

valve cover M6 x 16 mm

6шт.

18

892-1106

LOCK WASHER,M6

plated M6

6шт.

19

1972137C1

GASKET

valve cover

1шт.

20

1972135C1

PLUG

CAP oil filler, Includes: Ref. 21

1шт.

21

1972136C1

GASKET

oil filler cap

1шт.

22

1972138C1

BRACKET

engine lift rear

1шт.

23

30796R1

BOLT

BOLT hex, lift bracket, M8 x 16 mm

2шт.
